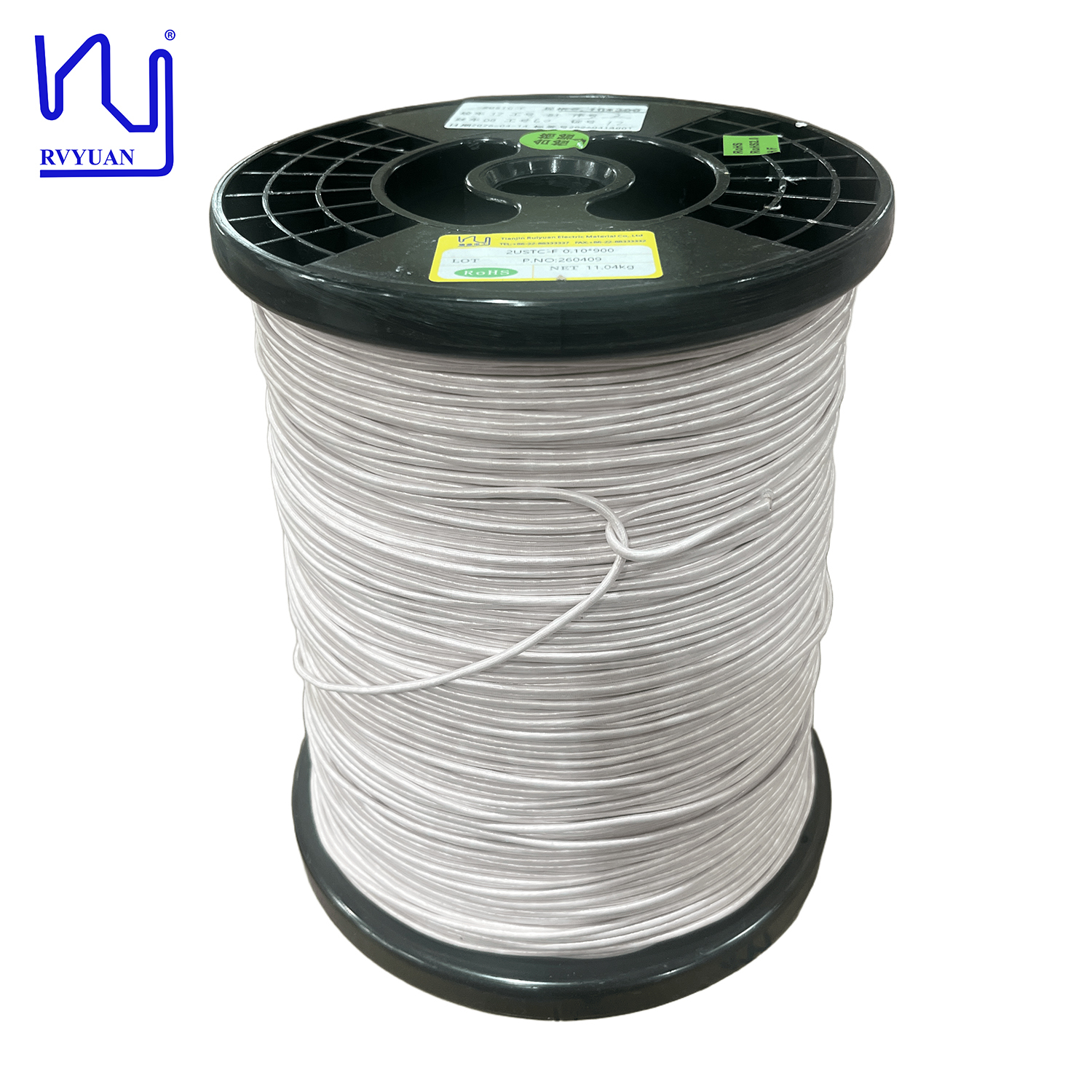

0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire

0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
Informação Básica
Lugar de origem: China
Marca: RVYUAN
Certificação: ISO9001/ISO14001 /UL/SGS
Número do modelo: USTC
Quantidade de ordem mínima: 50kg
Preço: Negociável
Detalhes da embalagem: Carretel com caixa
Tempo de entrega: 15 dias úteis
Termos de pagamento: T/T/Paypal
Habilidade da fonte: Satisfaça sua demanda
Melhor preço contacto
Informação detalhada
Diâmetro: 0,1mm Temperatura: 155
Certificação: IEC/NEMA/JIS/RoHS/ISO Condutor: Cobre
Fios: 300 Tensão de ruptura: Mín.1100
Material de cobertura: Nylon Palavra-chave: Fio de alta frequência de 0,1 mm Fio magnético esmaltado Fio Litz de cobre coberto de seda
Destacar:

0.1mm enameled magnet wire

,

high frequency Litz wire

,

silk covered copper wire

Descrição de produto

0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
This silk covered litz wire features a maximum overall diameter of 2.65 mm and a minimum withstand voltage of 1100 V. We support small-batch customization with a minimum order quantity of 20 kg, making it ideal for prototype development or specialized production runs.
Key Features
  • High frequency performance for specialized applications
  • Silk covered construction for enhanced durability
  • Minimum withstand voltage: 1100V
  • Maximum overall diameter: 2.65mm
  • Small-batch customization available
  • Minimum order quantity: 20kg
Technical Specifications
Parameter Technical Requirement Sample 1 Sample 2
Outer diameter of single wire (mm) 0.107-0.125 0.110 0.113
Conductor diameter (mm) 0.10±0.003 0.098 0.100
Overall diameter (mm) Max. 2.65 2.28 2.38
Resistance Ω/m (20℃) ≤0.007937 0.007391 0.007400
Breakdown voltage (V) ≥1100 2500 2800
Pitch 47±3 √ √
Pinhole test (faults/6m) 69 faults/6m 18 14
Solderability Temp. 390±5℃ 8s Smooth surface, no pinholes, no residue √ √
0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire 0
All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
