2UDTC-F 0.2mmx1300 Nylon Serving Litz Wire Copper Stranded Wire

Informação Básica

Lugar de origem:	China
Marca:	RVYUAN
Certificação:	ISO9001/ISO14001 /UL/SGS
Número do modelo:	USTC

Quantidade de ordem mínima:	20kg
Preço:	Negociável
Detalhes da embalagem:	Carretel com caixa
Tempo de entrega:	15 dias úteis
Termos de pagamento:	T/T/Paypal
Habilidade da fonte:	Satisfaça sua demanda

Melhor preço contacto

Informação detalhada

Diâmetro:	0,2 mm	Temperatura:	155
Certificação:	IEC/NEMA/JIS/RoHS/ISO	Condutor:	Cobre
Fios:	1300	Tensão de ruptura:	Mín.1600
Material de cobertura:	Nylon	Palavra-chave:	2UDTC-F 0,2mmx1300 Nylon Servindo Fio Litz Fio Trançado de Cobre
Destacar:	Nylon serving Litz wire , Copper stranded Litz wire , 0.2mm Litz wire with warranty

Descrição de produto

2UDTC-F 0.2mmx1300 Nylon Serving Litz Wire Copper Stranded Wire

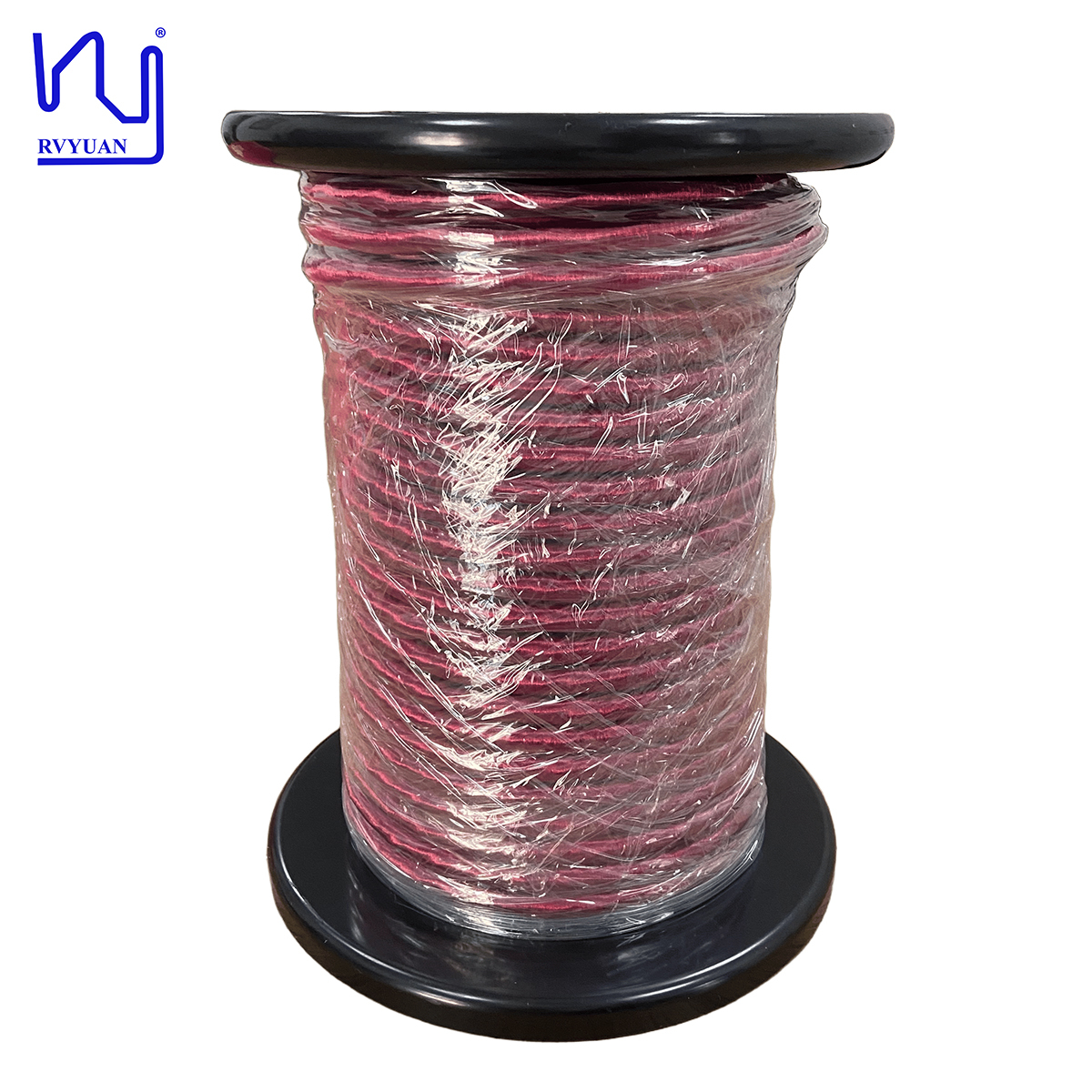

This premium pink litz wire is manufactured by twisting 1300 strands of 0.2 mm enameled copper wire, wrapped with durable dacron yarn. The distinctive pink polyester yarn was custom-produced to meet specific client requirements. For custom colored yarn wrapping needs, please contact us and we will work to accommodate your specifications.

Technical Specifications

Item No.	Diameter of Single Wire (mm)	Conductor Diameter (mm)	Overall Dimension (mm)	Resistance (Ω/m)	Breakdown Voltage (V)	Pitch
Tech Requirement	0.216-0.231	0.2±0.003	Max. 11.09	≤0.000444	≥1600	78±10
Sample 1	0.220-0.223	0.198-0.20	9.78-10.25	0.0000421	2800	√

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
