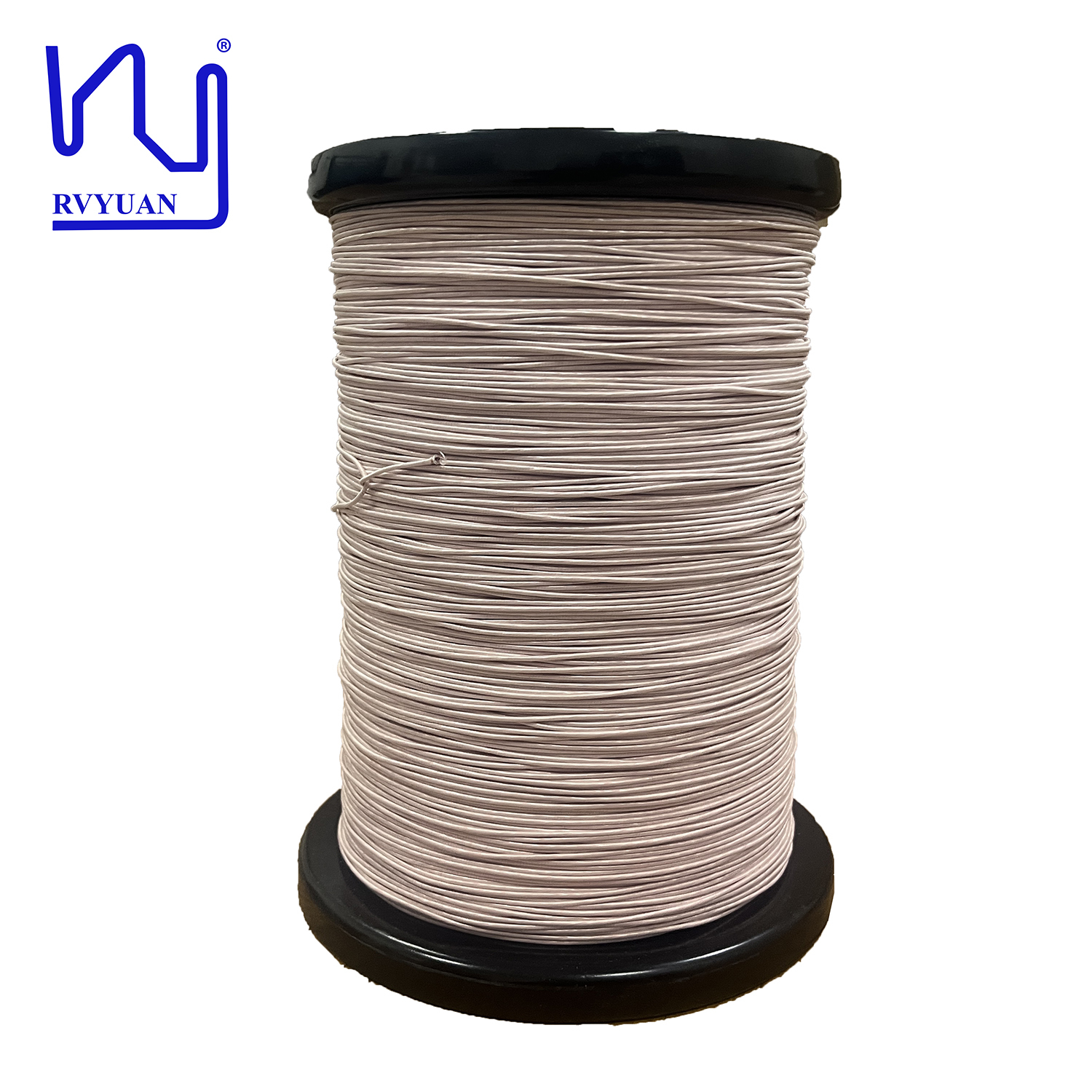

100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire

Informação Básica

Lugar de origem:	CHINA
Marca:	RVYUAN
Certificação:	ISO9001/ISO14001 /UL/SGS
Número do modelo:	Ustc

Quantidade de ordem mínima:	10 kg
Preço:	negotiable
Detalhes da embalagem:	Pobo com caixa
Tempo de entrega:	2-15 dias de funcionamento
Termos de pagamento:	T/ T/ PayPal
Habilidade da fonte:	Satisfaz sua demanda

Melhor preço contacto

Informação detalhada

Diâmetro:	0,1 mm	Temperatura:	155
Certificação:	IEC/NEMA/JIS/RoHS/ISO	Condutor:	Cobre
Fios:	100	Tensão de quebra:	Min.1100
Material de tampa:	nylon	Nome do produto:	100/0,1mm USTC Fio de alta frequência e alta temperatura Fio de cobre coberto de seda esmaltado Litz
Palavra -chave:	100/0,1mm USTC Fio de alta frequência e alta temperatura Fio de cobre coberto de seda esmaltado Litz
Destacar:	high temperature enameled litz wire , silk covered copper litz wire , high frequency ustc litz wire

Descrição de produto

100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire

Nylon served Litz wire offers advantages like enhanced mechanical protection and durability, improved insulation, and increased efficiency in high-frequency applications. The nylon serving provides a tough outer layer that protects against abrasion and mechanical stress, while the Litz construction of individual, insulated strands minimizes AC resistance. This combination makes the wire suitable for demanding environments and applications like motors, transformers, and high-frequency circuits.

Mechanical and Physical Advantages

The nylon serving provides strong mechanical protection against abrasion, bending, and stretching, increasing the wire's lifespan, especially in complex or demanding environments.
Mechanical strength: The nylon overcoat improves the wire's ability to withstand mechanical stress, making it suitable for high-speed winding applications.

Product Specifications

Item	Standard	Test value
Single wire outer diameter(mm)	0.107-0.125	0.110 \| 0.114
Conductor diameter(mm)	0.100±0.003	0.098 \| 0.10
Overall dimension(mm)	Max.1.43	1.3 \| 1.38
Pitch(mm)	27±5	√ \| √
Resistance(Ω/m at20℃)	Max.0.02381	0.0214 \| 0.0215
Pinhole	<45 faults/6m	8 \| 10
Breakdown voltage	>1100V	3300 \| 3400

Please send inquiries directly to request more information or quote!
