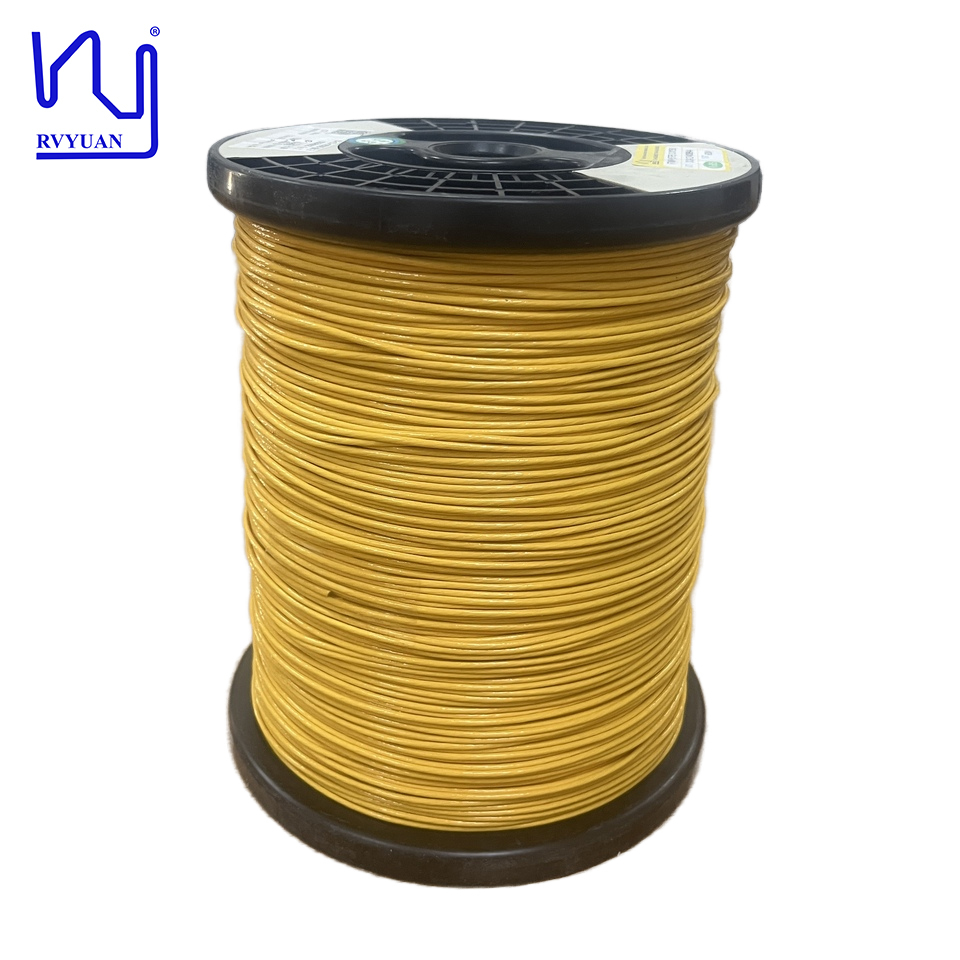

0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire

0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire
0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire
0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire
Informação Básica
Lugar de origem: CHINA
Marca: RVYUAN
Certificação: ISO9001/ISO14001 /UL/SGS
Número do modelo: Ustc
Quantidade de ordem mínima: 10 kg
Preço: negotiable
Detalhes da embalagem: Pobo com caixa
Tempo de entrega: 2-15 dias de funcionamento
Termos de pagamento: T/ T/ PayPal
Habilidade da fonte: Satisfaz sua demanda
Melhor preço contacto
Informação detalhada
Diâmetro: 0,1 mm Temperatura: 155
Certificação: IEC/NEMA/JIS/RoHS/ISO Condutor: Cobre
Fios: 100 Tensão de quebra: Min.1100
Material de tampa: nylon Nome do produto: Fio de alta frequência de alta temperatura USTC de 0,1 mm fio de cobre coberto de seda esmaltado Lit
Palavra -chave: Fio de alta frequência de alta temperatura USTC de 0,1 mm fio de cobre coberto de seda esmaltado Lit
Destacar:

high frequency magnet litz wire

,

ETFE FEP PFA litz wire

,

twisted silk covered copper wire

Descrição de produto

0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire
ETFE extruded litz wire is a type of electrical cable that combines a bundle of individually insulated strands (litz wire) with an outer protective layer of extruded Ethylene Tetrafluoroethylene (ETFE). This construction is designed to reduce AC losses at high frequencies, while the durable ETFE coating provides excellent thermal, chemical, and mechanical resistance for use in demanding applications like wireless charging and induction heating.
Product Specifications
Item Standard Test value
Single wire outer diameter(mm) 0.107-0.125 0.110 | 0.114
Conductor diameter(mm) 0.100±0.003 0.098 | 0.10
Overall dimension(mm) Max.1.43 1.3 | 1.38
Pitch(mm) 27±5 √ | √
Resistance(Ω/m at20℃) Max.0.02381 0.0214 | 0.0215
Pinhole <45 faults/6m 8 | 10
Breakdown voltage >1100V 3300 | 3400
0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire 0
Please send inquiries directly to request more information or quote!
