Custom litz wire 2-13000 Strands Copper Stranding Wire for Transformer

Informação Básica

Lugar de origem:	CHINA
Marca:	RVYUAN
Certificação:	ISO9001/ISO14001 /UL/SGS
Número do modelo:	Ustc

Quantidade de ordem mínima:	10 kg
Preço:	negotiable
Detalhes da embalagem:	Pobo com caixa
Tempo de entrega:	2-15 dias de funcionamento
Termos de pagamento:	T/ T/ PayPal
Habilidade da fonte:	Satisfaz sua demanda

Melhor preço contacto

Informação detalhada

Diâmetro:	0,071mm	Temperatura:	155
Certificação:	IEC/NEMA/JIS/RoHS/ISO	Condutor:	Cobre
Fios:	250	Tensão de quebra:	1300
Isolamento:	Uew	Nome do produto:	Fio Litz de Litz 2-13000 fios de cobre Fio para transformador
Palavra -chave:	Fio Litz de Litz 2-13000 fios de cobre Fio para transformador
Destacar:	custom litz wire for transformer , copper stranding litz wire , 13000 strands litz wire

Descrição de produto

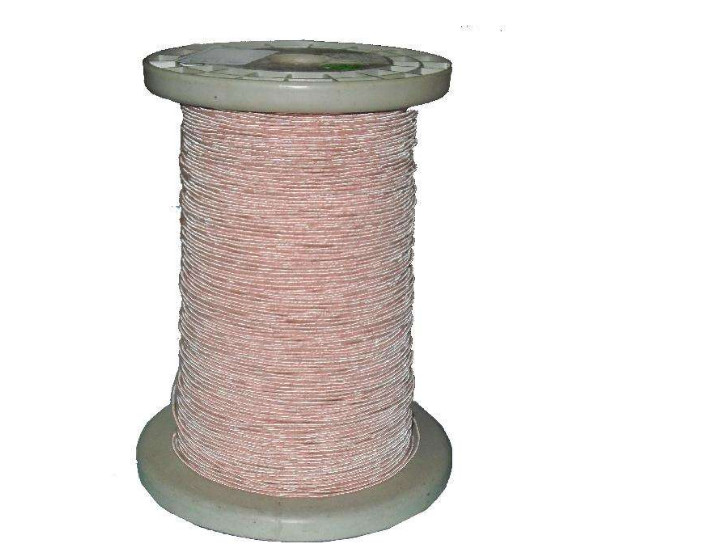

Custom Litz Wire 2-13000 Strands Copper Stranding Wire for Transformer

Our company offers a variety of custom litz wire solutions to meet your specific needs. We offer single wire sizes ranging from 0.025 mm to 0.5 mm, with strand counts ranging from single to 13,000 strands.

In addition to stranded wire, we also offer various types of stranded wire with cover, including:

Nylon served litz wire
Taped litz wire
Flat nylon severed and taped litz wire

Our products are designed to meet the unique needs of your application, ensuring optimal performance and efficiency. With an emphasis on quality and customization, we work closely with our customers to provide litz wire solutions that perfectly fit their systems.

Product Specifications

Attribute	Value
Diameter	0.071mm
Temperature	155
Certification	IEC/NEMA/JIS/RoHS/ISO
Conductor	Copper
Strands	250
Breakdown voltage	1300
Insulation	UEW

Technical Specifications

Item	Technical requests	Test value 1	Test value 2
Conductor Diameter (mm)	0.076-0.084	0.079	0.080
Single wire diameter (mm)	0.071±0.003	0.068	0.070
O.D. (mm)	Max. 1.85	1.57	1.68
Resistance Ω/m (20℃)	Max. 0.01196	0.01815	0.01812
Breakdown Voltage V	950	3100	3000
Pitch mm	29± 5	√	√
No. of strands	250	√	√

Explore the endless possibilities of our natural silk-covered litz wire and experience the extraordinary experience of working with a trusted industry leader. Contact us today to discuss your needs and let us create the perfect wire solution for your next project.
