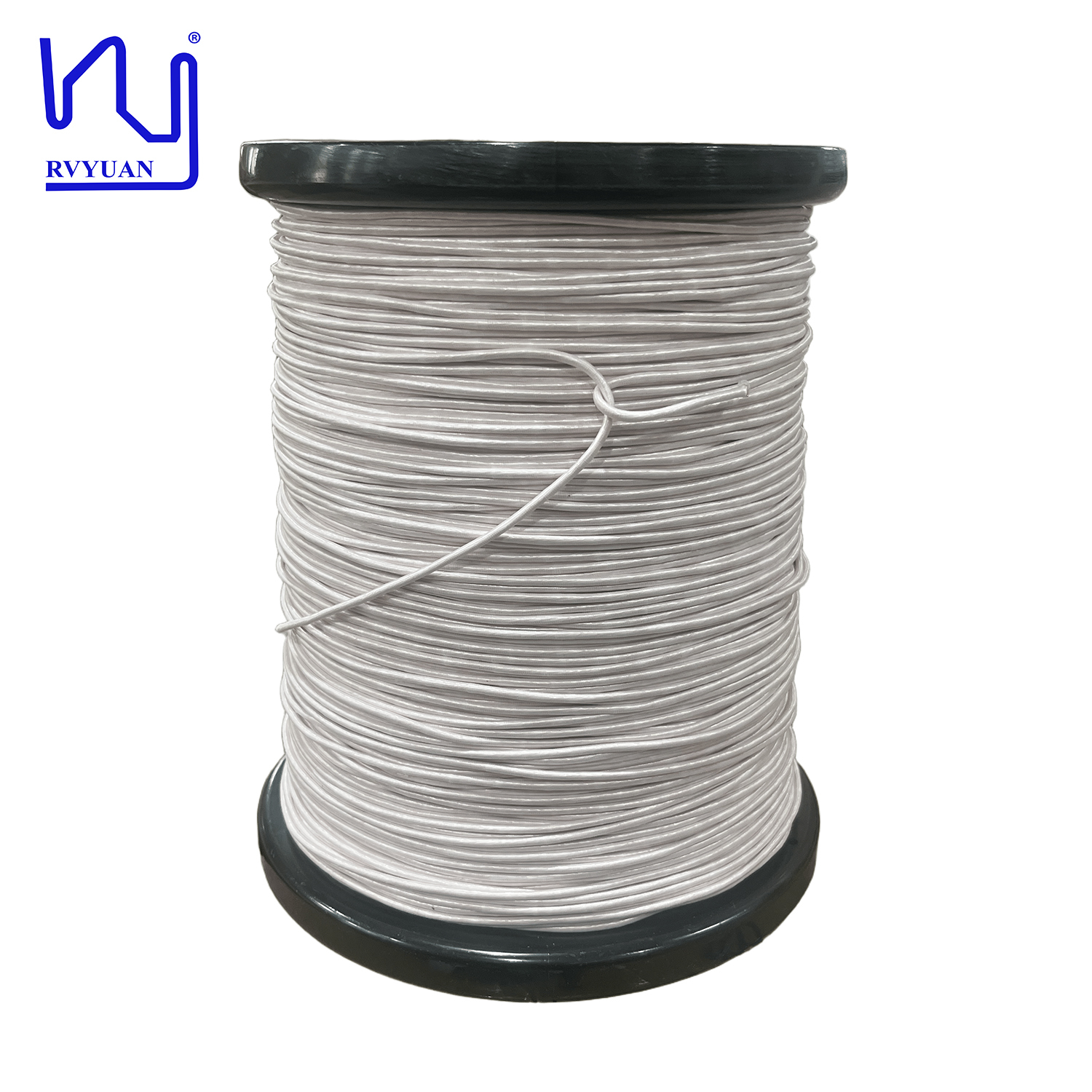

2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer

2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer
2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer
2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer
Informação Básica
Lugar de origem: China
Marca: RVYUAN
Certificação: ISO9001/ISO14001 /UL/SGS
Número do modelo: USTC
Quantidade de ordem mínima: 50kg
Preço: Negociável
Detalhes da embalagem: Carretel com caixa
Tempo de entrega: 15 dias úteis
Termos de pagamento: T/T/Paypal
Habilidade da fonte: Satisfaça sua demanda
Melhor preço contacto
Informação detalhada
Diâmetro: 0,1mm Temperatura: 155
Certificação: IEC/NEMA/JIS/RoHS/ISO Condutor: Cobre
Fios: 300 Tensão de ruptura: Mín.1100
Material de cobertura: Nylon Palavra-chave: Fios revestidos de seda de alta frequência da costa do fio 0.1x300Multi de Litz 2USTC para o transfo
Destacar:

high frequency litz wire

,

silk coated litz wire

,

multi strand transformer wire

Descrição de produto

2USTC High Frequency Silk Coated Litz Wire 0.1x300 Multi Strand Wires
This nylon serving litz wire is engineered for transformer windings in demanding applications including switch-mode power supplies, high-frequency inverters, and resonant converters. The litz construction significantly reduces AC resistance, enhancing energy efficiency while minimizing heat generation.
Key Applications & Benefits
  • Ideal for transformer windings in high-frequency power conversion circuits
  • Reduces AC resistance for improved energy efficiency
  • Minimizes heat generation in demanding applications
  • Nylon serving provides abrasion resistance and electrical isolation
  • Compact diameter enables higher packing density in transformer cores
  • Excellent voltage rating ensures reliable performance
Technical Specifications
Item Tech Requirement Sample 1 Sample 2
Diameter of Single Wire (mm) 0.107-0.125 0.110 0.113
Conductor Diameter (mm) 0.10±0.003 0.098 0.100
OD (mm) Max. 2.65 2.28 2.38
Resistance Ω/m (20℃) ≤0.007937 0.007391 0.007400
Breakdown Voltage (V) ≥1100 2500 2800
Pitch 47±3 √ √
Pinhole Test 69 faults/6m 18 14
Solderability Temp. 390±5℃ 8s Smooth surface, no pinholes, no residue √ √
2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer 0
All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
