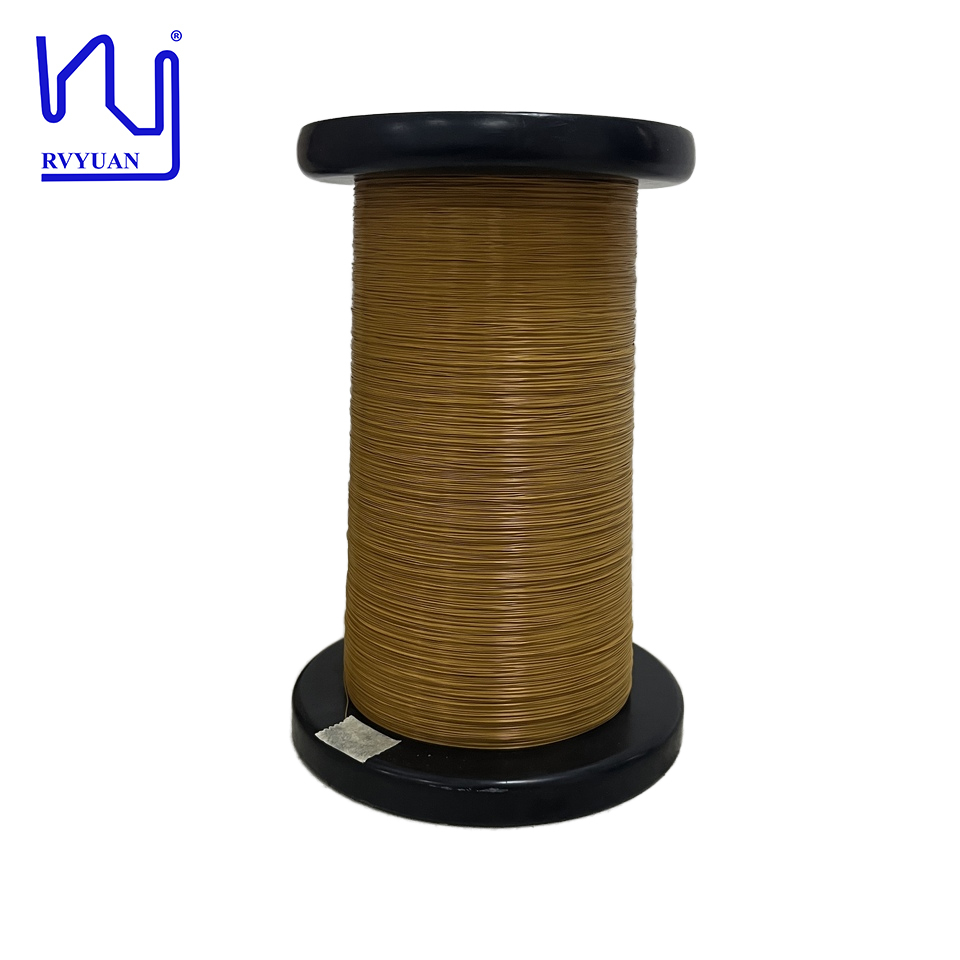

Custom ETFE 155℃ Reinforced Insulation 0.15mm Tripe Insulated Wire

Informação Básica

Lugar de origem:	China
Marca:	RVYUAN
Certificação:	UL/ISO9001/ISO14001/RoHS/Reach
Número do modelo:	0,15mm

Quantidade de ordem mínima:	3000 medidores
Preço:	negotiable
Detalhes da embalagem:	caixa
Tempo de entrega:	7 dias
Termos de pagamento:	T/T/PayPal
Habilidade da fonte:	1ton/month

Melhor preço contacto

Informação detalhada

Nome do produto:	ETFE feito sob encomenda 155℃ reforçou o fio isolado tripa da isolação 0.15mm	Classificação térmica:	155
Diâmetro de fio único:	0,15mm	Material condutor:	Cobre
Insutação:	ETFE
Destacar:	Custom ETFE triple insulated wire , 155℃ reinforced insulation wire , 0.15mm triple insulated wire

Descrição de produto

Custom ETFE 155℃ Reinforced Insulation 0.15mm Triple Insulated Wire

This high-performance triple insulated wire features ETFE material rated for 155℃ operation, delivering superior mechanical and electrical properties for demanding applications.

Key Features

Superior Mechanical Performance: Resists abrasion, puncture, and mechanical damage for use in harsh environments
Exceptional Electrical Insulation: ETFE's high dielectric strength combined with triple insulation minimizes electrical breakdown
High-Temperature Rating: Rated for continuous operation at 155℃
Precision Construction: Tight dimensional tolerances ensure consistent performance

Product Specifications

Item	Standard	Test Result
Outer diameter of conductor (mm)	0.169mm(Max.)	0.163 \| 0.165 \| 0.163
Enamel coating thickness	0.008mm(min.)	0.013 \| 0.016 \| 0.014
Conductor	0.15±0.003mm	0.15 \| 0.149 \| 0.149
Elongation	15%(min.)	30.6 \| 30.6 \| 30.6
Overall dimension	0.350-0.365mm(max.)	0.359 \| 0.362 \| 0.359
Insulation thickness	0.1±0.01mm(min)	0.099 \| 0.101 \| 0.094
Pinhole	0 M/1 fault(max)	0 \| 0 \| 0
Resistance	1037Ω,km(max)	1007.3 \| 1001.6 \| 1004.8
Breakdown voltage	6KV(min)	16.6 \| 17 \| 17.6
Solderability(±10℃)	450℃ 3s smooth	ok \| ok \| ok

Customization & Support

We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.
