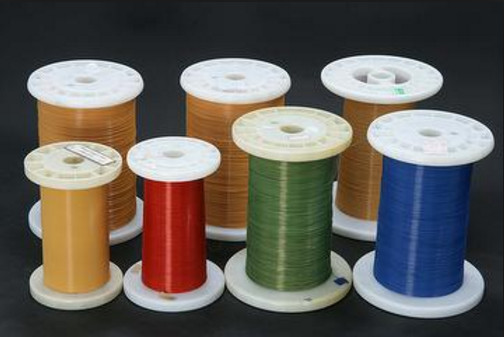

Triple Insulated Wire 0.15mm Insulated TIW Wire

Informação Básica

Lugar de origem:	China
Marca:	RVYUAN
Certificação:	UL/ISO9001/ISO14001/RoHS/Reach
Número do modelo:	0,15mm

Quantidade de ordem mínima:	3000 medidores
Preço:	negotiable
Detalhes da embalagem:	Caixa
Tempo de entrega:	7 dias
Termos de pagamento:	T/T/PayPal
Habilidade da fonte:	1ton/month

Melhor preço contacto

Informação detalhada

Nome do produto:	Fio com isolamento triplo Fio TIW com isolamento de 0,15 mm	Classificação térmica:	155
Diâmetro de fio único:	0,15mm	Material condutor:	Cobre
Insutação:	ETFE
Destacar:	0.15mm triple insulated wire , TIW wire with high insulation , triple insulated electrical wire

Descrição de produto

Triple Insulated Wire 0.15mm Insulated TIW Wire

Triple-insulated wire is a special type of conductor specifically designed for use in high-frequency transformers, inductors, and other electrical equipment. Its core feature is its three independent insulation layers. This design makes it superior to ordinary enameled or double-insulated wire in terms of safety and performance.

Main Applications

High-Frequency Transformers (especially switching power supply transformers) widely used in the windings of high-frequency transformers in switching power supplies (SMPS), adapters, chargers, and other equipment
Due to the triple insulation, there is no need for retaining tape or insulating sleeves between the primary and secondary windings, simplifying the winding process and improving space utilization

Product Specifications

Item	Standard	Test Result
Outer diameter of conductor (mm)	0.169mm (Max.)	0.163 \| 0.165 \| 0.163
Enamel coating thickness	0.008mm (min.)	0.013 \| 0.016 \| 0.014
Conductor	0.15±0.003mm	0.15 \| 0.149 \| 0.149
Elongation	15% (min.)	30.6 \| 30.6 \| 30.6
Overall dimension	0.350-0.365mm (max.)	0.359 \| 0.362 \| 0.359
Insulation thickness	0.1±0.01mm (min)	0.099 \| 0.101 \| 0.094
Pinhole	0 M/1 fault (max)	0 \| 0 \| 0
Resistance	1037Ω,km (max)	1007.3 \| 1001.6 \| 1004.8
Breakdown voltage	6KV (min)	16.6 \| 17 \| 17.6
Solderability (±10℃)	450℃ 3s smooth	ok \| ok \| ok

Customization & Support

We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.
