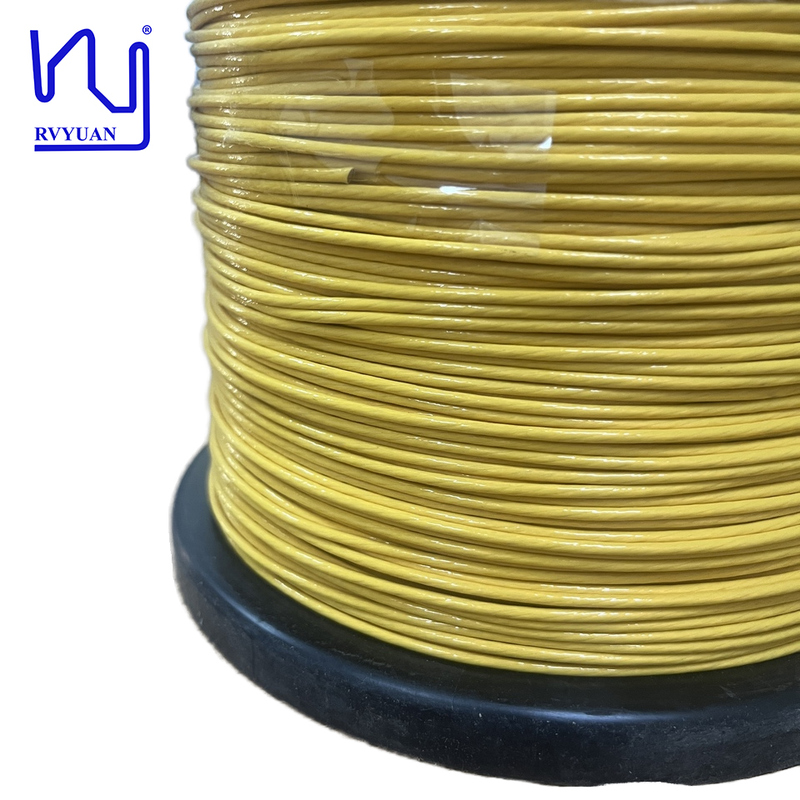

FTIW-F 155℃ 0.1mm*250 ETFE Insulation Litz Wire For Transformer

Informação Básica

Lugar de origem:	CHINA
Marca:	RVYUAN
Certificação:	UL/ISO9001/ISO14001/RoHS/Reach
Número do modelo:	0,1 mm

Quantidade de ordem mínima:	1000 metros
Preço:	negotiable
Detalhes da embalagem:	Carton
Tempo de entrega:	7 dias
Termos de pagamento:	T/T/PayPal
Habilidade da fonte:	1ton/month

Melhor preço contacto

Informação detalhada

Nome do produto:	FTIW-F 155 ℃ 0,1mm*250 ETFE Isulation Litz Wire para transformador	Classificação térmica:	155
Diâmetro de fio único:	0,1 mm	Material do condutor:	Cobre
No. de fios:	250	Insutação:	ETFE
Destacar:	ETFE insulated Litz wire , Transformer Litz wire 155℃ , 0.1mm ETFE triple insulated wire

Descrição de produto

FTIW-F 155℃ 0.1mm*250 ETFE Insulation Litz Wire For Transformer

ETFE-insulated Litz wire is a highly specialized wiring solution designed for advanced electrical applications, particularly those operating in high-frequency environments. This Litz wire has an internal single-wire diameter of 0.1 mm and is constructed from 250 strands of enameled copper wire. This sophisticated construction enhances flexibility and reduces skin-effect losses, making it ideal for high-frequency applications.

Technical Specifications

Characteristics	Technical Requests	Sample 1	Sample 2	Sample 3	Conclusion
Appearance	Smooth & Clean	OK	OK	OK	OK
Diameter of single wire	0.10±0.003mm	0.100	0.100	0.099	OK
Thickness of Enamel	≥ 0.004mm	0.006	0.007	0.008	OK
OD of single wire	0.105-0.109mm	0.106	0.107	0.107	OK
Twist Pitch	S28±2	OK	OK	OK	OK
Insulation Thickness	Min.0.1mm	0.12	0.12	0.12	OK
OD of Litz Wire	Max. 2.2mm	2.16	2.16	2.12	OK
DC Resistance	Max.9.81 Ω/km	9.1	9.06	9.15	OK
Elongation	≥ 13 %	23.1	21.9	22.4	OK
Breakdown Voltage	≥ 5K V	8.72	9.12	8.76	OK
Pin Hole	0 hole/5m	0	0	0	OK

We have a professional team to provide technical support. Custom specifications available upon request.
