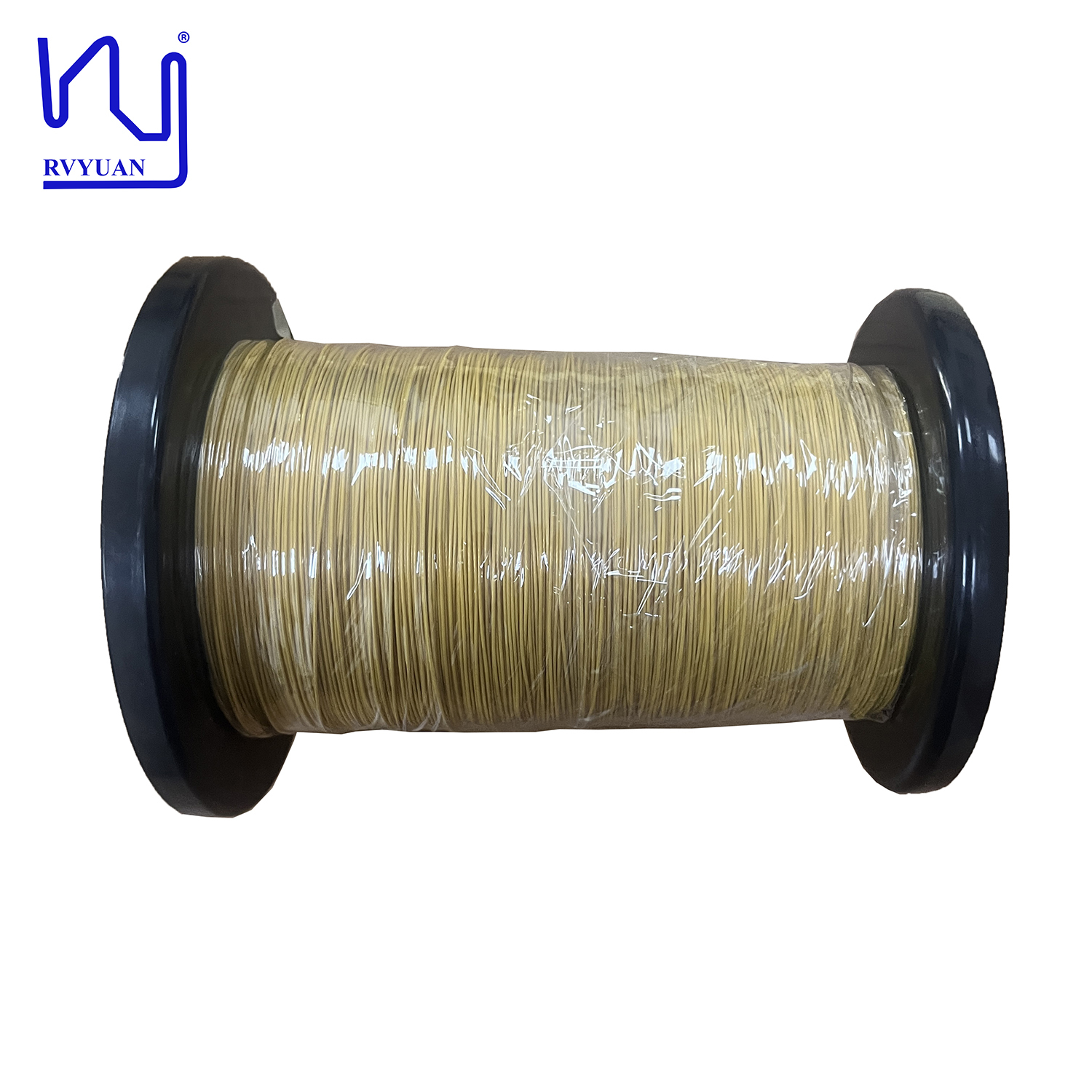

ETFE Insulation Litz Wire 0.24mmx7 Strands TIW For High Frequency Applications

Informação Básica

Lugar de origem:	CHINA
Marca:	RVYUAN
Certificação:	UL/ISO9001/ISO14001/RoHS/Reach
Número do modelo:	0.24mm

Quantidade de ordem mínima:	1000 metros
Preço:	negotiable
Detalhes da embalagem:	Carton
Tempo de entrega:	7 dias
Termos de pagamento:	T/T/PayPal
Habilidade da fonte:	1ton/month

Melhor preço contacto

Informação detalhada

Nome do produto:	Isolamento ETFE Litz Wire 0,24mmx7 fios TIW para aplicações de alta frequência	Classificação térmica:	155
Diâmetro de fio único:	0.24mm	Material do condutor:	Cobre
No. de fios:	7	Insutação:	ETFE
Destacar:	ETFE insulated Litz wire , high frequency Litz wire , 0.24mmx7 strands TIW wire

Descrição de produto

ETFE Insulation Litz Wire 0.24mmx7 Strands TIW For High Frequency Applications

Extruded ETFE litz wire is a high-performance cabling solution designed for demanding electrical applications, particularly those operating in high-frequency environments. This litz wire has a single strand diameter of 0.24 mm and is constructed from seven strands twisted together. This unique construction enhances flexibility and reduces skin-effect losses, making it ideal for high-frequency applications.

Technical Specifications

Characteristics	Test Standard	Test result
Min. insulation thickness	Mm(min)0.11	0.120	0.127	0.120
Pitch	12±2	ok	ok	ok
Single wire Diameter	0.24±0.003MM	0.239	0.240	0.240
Overall dimension	/	1.03	1.05	1.05
Conductor Resistance	Max. 59.18Ω/KM	56.04	56.12	56.10
Breakdown voltage	Min. 6KV(min)	15.2	14.4	14.8
Solder ability	400℃ 3Secs	OK	OK	OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
