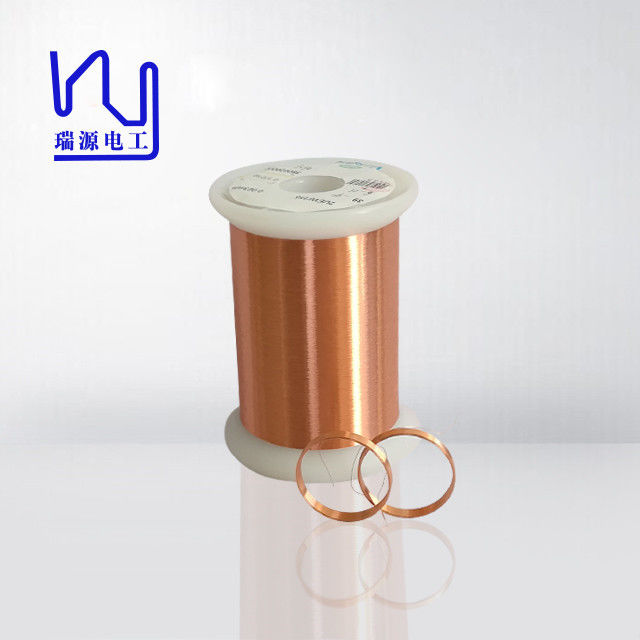

99.9999% 0.028mm 0.04mm Self Adhesive OCC Enameled Copper Wire

Informação Básica

Lugar de origem:	China
Marca:	Ruiyuan
Certificação:	UL/ISO9001/ISO14001/RoHS/Reach
Número do modelo:	OCC

Quantidade de ordem mínima:	2kg
Preço:	Negociável
Detalhes da embalagem:	CAIXA
Tempo de entrega:	2-15 dias
Termos de pagamento:	Negociação
Habilidade da fonte:	10/semana

Melhor preço contacto

Informação detalhada

Nome do produto:	99,9999% 0,028 mm 0,04 mm OCC autoadesivo esmaltado fio de cobre	Classificação térmica:	155
Material de isolamento:	Esmalte	Diâmetro:	0.028 mm
Material condutor:	Cobre	Palavra-chave:	99,9999% 0,028 mm 0,04 mm OCC autoadesivo esmaltado fio de cobre
Destacar:	0.028mm self adhesive OCC wire , 0.04mm enameled copper wire , 99.9999% pure OCC wire

Descrição de produto

99.9999% 0.028mm 0.04mm Self Adhesive OCC Enameled Copper Wire

This high-purity self-adhesive OCC enameled copper wire features exceptional conductivity and specialized bonding properties for advanced electronic applications.

Key Applications

Semiconductor Packaging: Used as bonding wire in integrated circuit (IC) packaging, replacing gold wires to reduce costs while maintaining performance
Precision Coil Windings: Ideal for headphone voice coils, miniature speakers, precision sensors, and medical instrument probes

Self-Adhesive Advantages

The wire surface is coated with a self-adhesive layer (thermosetting or thermoplastic). After winding, coil turns automatically bond and cure through heating or solvent treatment, forming a unified structure without frames or additional fixing materials. This ensures shape stability, shock resistance, and enables more compact designs.

Mechanical Properties Comparison

Sample	Tensile Strength (Mpa)	Yield Strength (Mpa)	Elongation (%)	Vickers Hardness (HV)	Reduction of Area (%)
Single Crystal Copper	128.31	83.23	48.32	65	55.56
OFC Copper	151.89	121.37	26	79	41.22

Production Process

Multi-Scenario Applications

High-end home theater and HiFi systems
KTV wiring and car audio systems
Multimedia audio-visual rooms and cinemas
Banquet halls and lecture halls
Multimedia classrooms and gym audio systems
Hotel and restaurant audio systems
Office meeting rooms
Concerts and multi-channel applications
