Enameled USTC Wire 0.055mmx126 Natural Silk Covered Silver plated copper litz wire

Informação Básica

Lugar de origem:	China
Marca:	RVYUAN
Certificação:	ISO9001/ISO14001 /UL/SGS
Número do modelo:	USTC

Quantidade de ordem mínima:	20kg
Preço:	Negociável
Detalhes da embalagem:	Carretel com caixa
Tempo de entrega:	15 dias úteis
Termos de pagamento:	T/T/Paypal
Habilidade da fonte:	Satisfaça sua demanda

Melhor preço contacto

Informação detalhada

Diâmetro:	0.055mm	Temperatura:	155
Certificação:	IEC/NEMA/JIS/RoHS/ISO	Condutor:	Cobre
Fios:	126	Tensão de ruptura:	Mín.950
Material de cobertura:	Nylon	Palavra-chave:	Fio USTC esmaltado 0,055 mm x 126 fio litz de cobre banhado a prata natural coberto de seda
Destacar:	enameled USTC litz wire , silver plated copper litz wire , natural silk covered litz wire

Descrição de produto

Enameled USTC Wire 0.055mmx126 Natural Silk Covered Silver Plated Copper Litz Wire

This customized natural silk covered silver plated litz wire is engineered to meet the exacting demands of high-end audio applications. Its unique construction provides superior signal transmission, purity, and durability.

Product Features

Each silver plated copper wire features enamel insulation for complete electrical isolation between strands
Forces signal to flow through the entire conductor, minimizing eddy currents and phase distortion
Exceptional dielectric voltage resistance of at least 950 volts for safety and reliability
Ideal for high-voltage tube amplifier circuits and premium audio applications

Technical Specifications

Parameter	Specification
Conductor Diameter	0.0550±0.0030 mm (silver layer: 0.0002 mm)
Single Sides Insulated Layer Thickness	0.0050±0.0010 mm
Electrical Resistance of Single Wire	6.243~7.738 Ω/m
Breakdown Voltage	≥950 V
Twist Distance	P1=8±2 mm, P2=21±3 mm
Stranding Mode	18X7
Electrical Resistance	0.0505~0.0627 Ω/m
Thermal Class	F(155)
Soldering Time	2S/390±5℃
Twist Direction	Z
Faults/5m (Saline Pinhole)	0

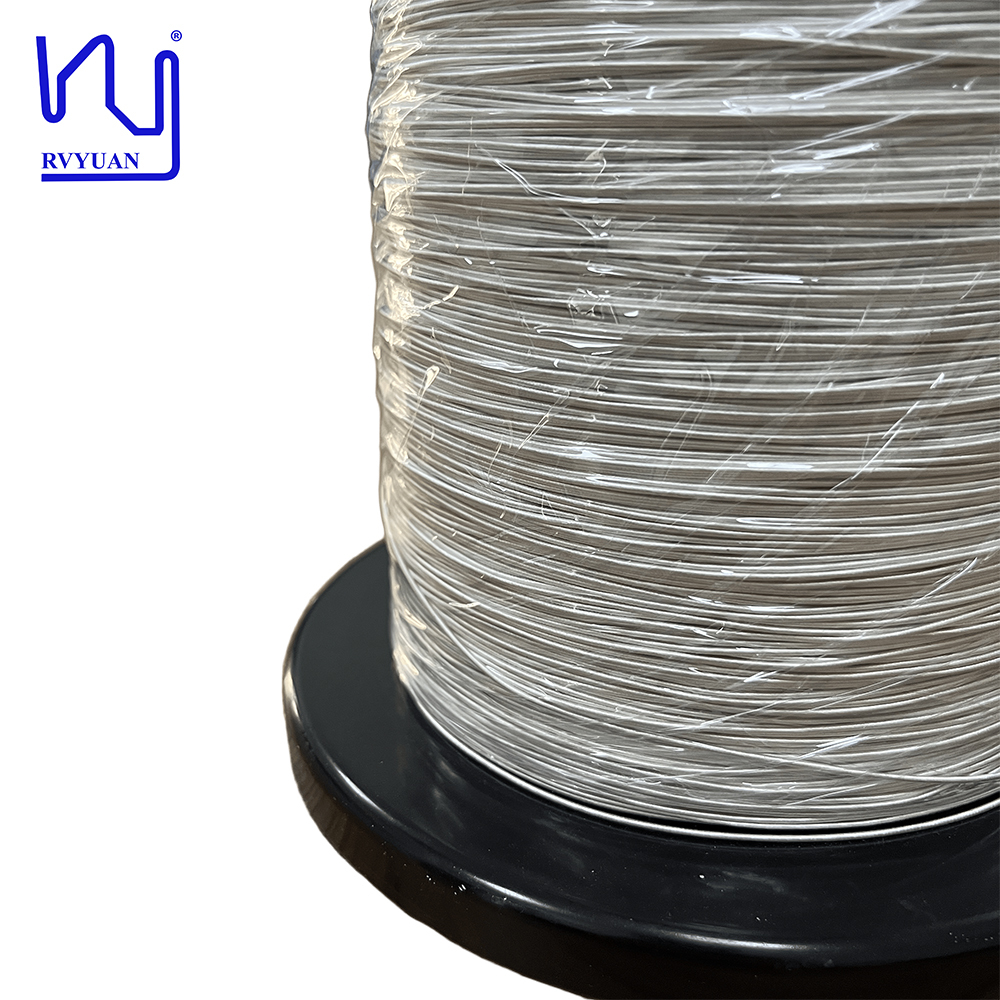

Product Image
