| Lugar de origem: | China |
|---|---|
| Marca: | RVYUAN |
| Certificação: | UL/ISO9001/ISO14001/RoHS/Reach |
| Número do modelo: | Calibre de diâmetro de fios 42 |
| Quantidade de ordem mínima: | 2kg |
| Preço: | negotiable |
| Detalhes da embalagem: | Caixa |
| Tempo de entrega: | 3 dias |
| Termos de pagamento: | T/T/PayPal |
| Habilidade da fonte: | 1ton/month |

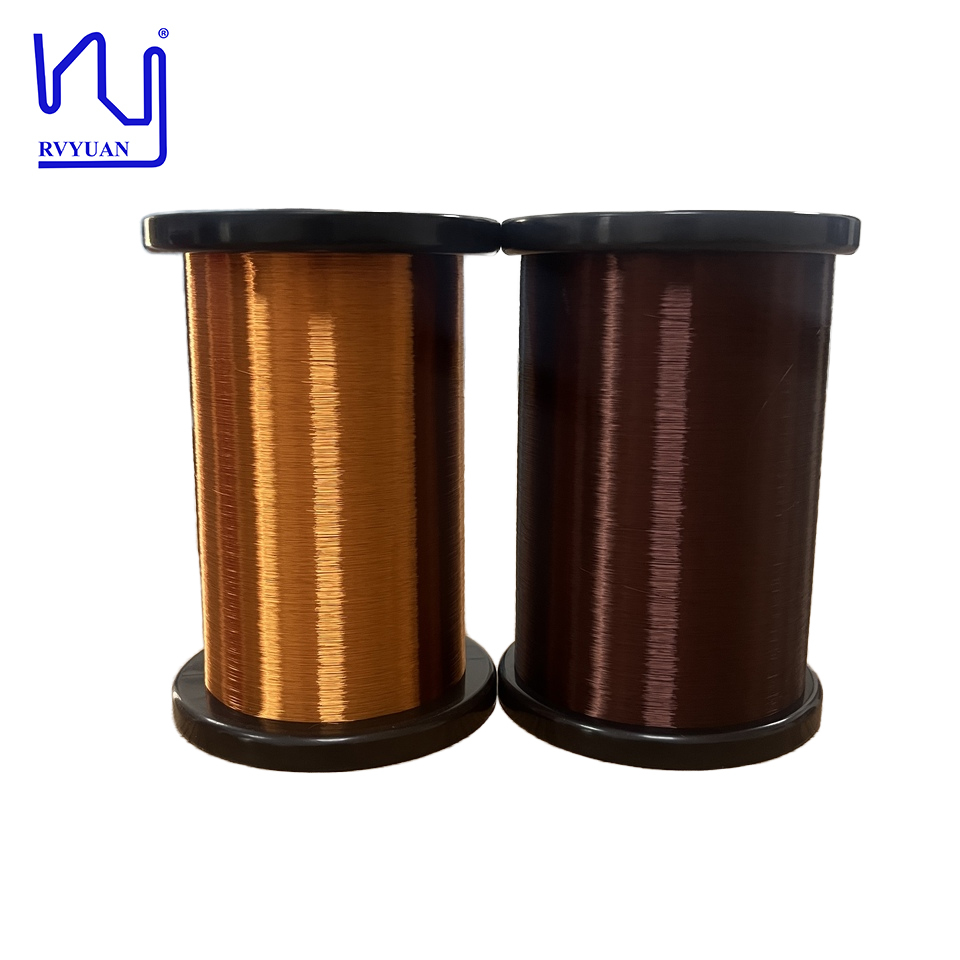

| Nome do produto: | Fio magnético Formvar pesado 42AWG para captador de guitarra 2kg | Isolamento: | Formvar pesado |
|---|---|---|---|
| Tamanho: | AWG42 | Aplicativo: | Bobinas dos recolhimentos da guitarra |
| Quantidade mínima: | 2KG (1 rolo) | ||
| Destacar: | 42AWG heavy formvar magnet wire,guitar pickup magnet wire 2kg,heavy formvar wire for pickups | ||
We supply some of the world's guitar pickup craftsmen with wire custom made to order. Our Pickup Wire started with an Italian customer several years ago, after a year of R&D, and half-year blind and device test in Italy, Canada, Australia. Since launched into markets, Ruiyuan Pickup Wire won a good reputation and has been chosen by over 300 pickups clients from Europe, America, Asia, etc.
Customized colors and size: only 20kg you can choose your exclusive color
We mainly manufacture Plain, heavy Formvar insulation and poly insulation wire, for the simple reason that they just sound best to our ears.
The thickness of the wire is usually measured in AWG, which stands for American Wire Gauge. In guitar pickups, 42 AWG is the one that's most commonly used. But wire-types measuring from 41 to 46 AWG are all being used in the construction of guitar pickups.
The most professional guitar pickup wire manufacturer, we offer formvar/plain enameled copper wire. 42awg, 43awg, 44awg. The wire is mainly used in winding guitar pickups, and is a favorite among many custom pickup shops.
| Characteristics | Technical requests | Test results |
|---|---|---|
| Conductor diameter | 0.063mm±0.002 | 0.063mm |
| Overall dimension | ≤0.074mm | 0.071mm |
| Conductor resistance | ≤ 5.900 Ω/m | 5.478 |
| Breakdown voltage | ≥ 400 V | 1768 |
