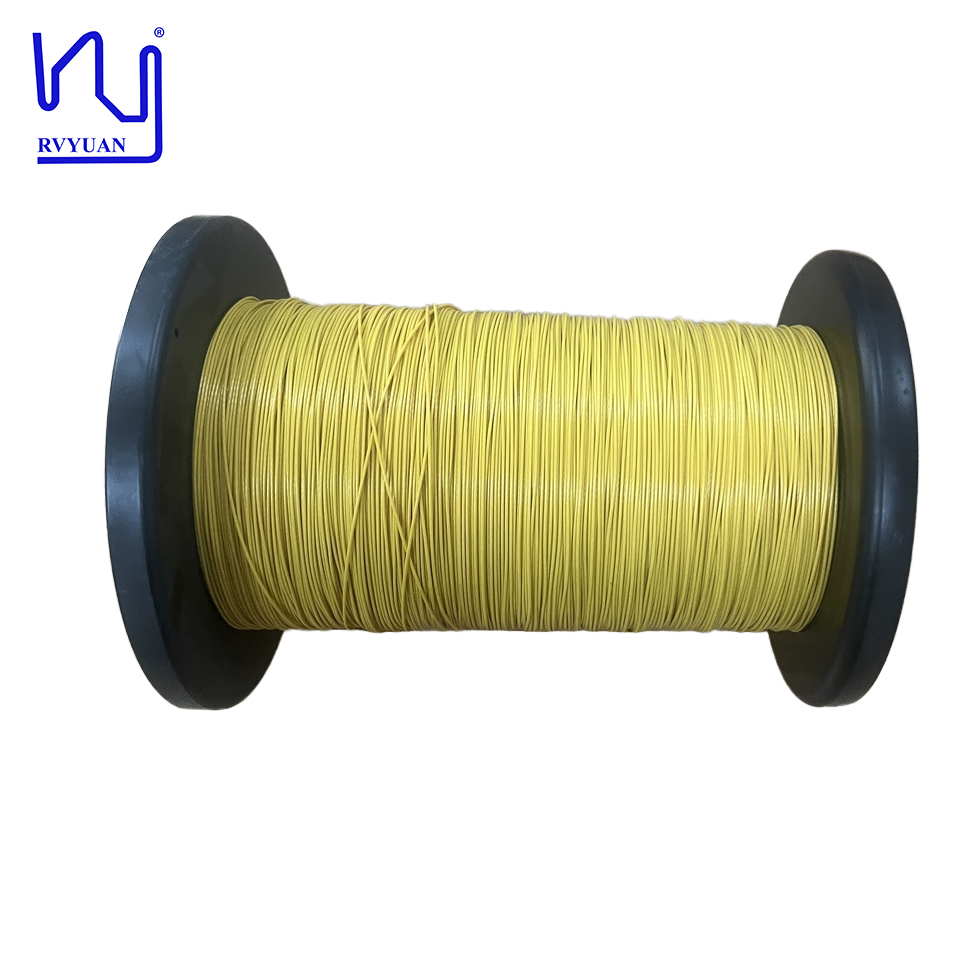

ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire

Informação Básica

Lugar de origem:	CHINA
Marca:	RVYUAN
Certificação:	UL/ISO9001/ISO14001/RoHS/Reach
Número do modelo:	0.27mm

Quantidade de ordem mínima:	1000 metros
Preço:	negotiable
Detalhes da embalagem:	Carton
Tempo de entrega:	7 dias
Termos de pagamento:	T/T/PayPal
Habilidade da fonte:	1ton/month

Melhor preço contacto

Informação detalhada

Nome do produto:	Isolamento ETFE 0,21mm 0,24 mm 0,27 mm TIW Fio Litz de cobre isolado	Classificação térmica:	155
Diâmetro de fio único:	0.27mm	Material do condutor:	Cobre
No. de fios:	7	Insutação:	ETFE
Destacar:	ETFE insulated copper litz wire , TIW insulated litz wire , 0.27mm copper litz wire

Descrição de produto

ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire

Construction

Individual copper strands are insulated, often with a lacquer coating.
These strands are then twisted or bundled together to form the Litz structure.
An extruded, continuous layer of ETFE is applied to the outside of the twisted bundle for protection and enhanced insulation.

Specifications

Characteristics	Test Standard	Test result
Outer diameter of single wire	0.295mm	0.288 \| 0.287 \| 0.287
Min. insulation thickness	/Mm(min)	0.019 \| 0.018 \| 0.019
Pitch	S12±2	ok \| ok \| ok
Single wire Diameter	0.27±0.004MM	0.269 \| 0.269 \| 0.268
Overall dimension	1.06-1.2mm(Max)	1.078 \| 1.088 \| 1.085
Conductor Resistance	Max. 45.23Ω/KM(max)	44.82 \| 44.73 \| 44.81
Breakdown voltage	Min. 6KV(min)	15 \| 14.5 \| 14.9
Solder ability	450℃ 3Secs	OK \| OK \| OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
