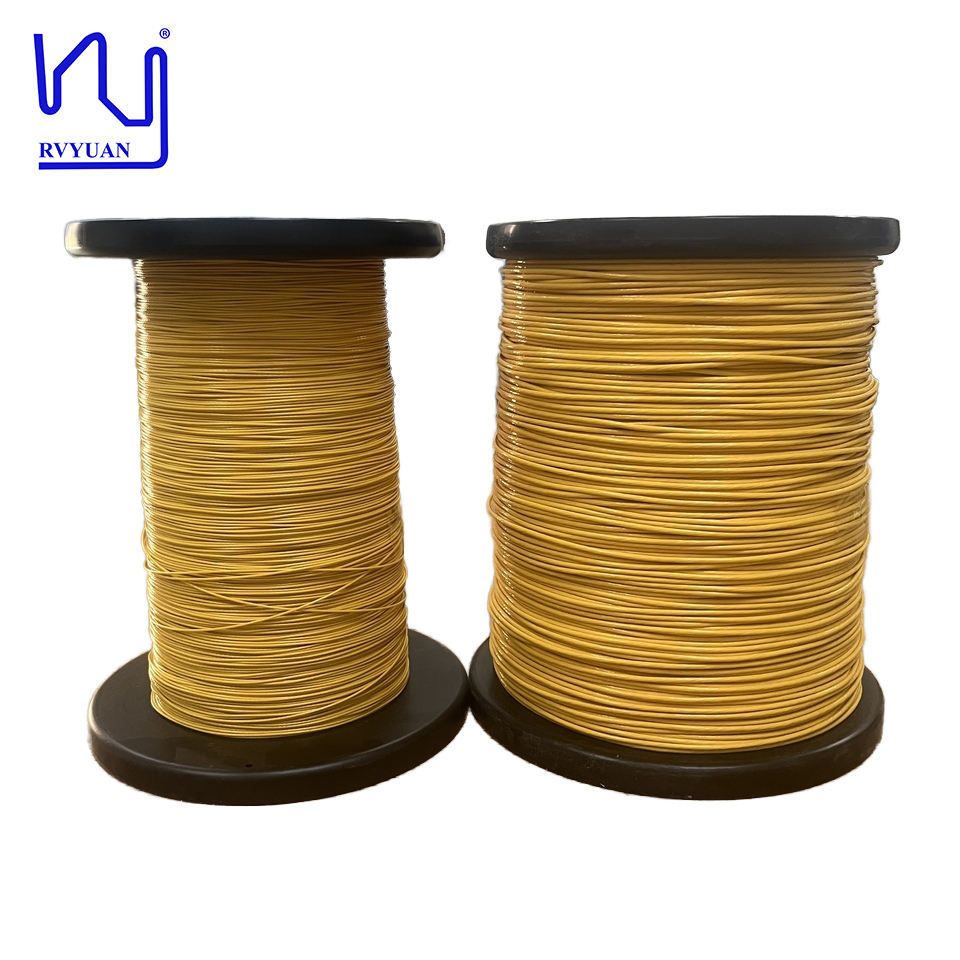

Custom Class 155 7 Strands Extruded ETFE Insulation Copper Litz Wire

Informação Básica

Lugar de origem:	CHINA
Marca:	RVYUAN
Certificação:	UL/ISO9001/ISO14001/RoHS/Reach
Número do modelo:	0.27mm

Quantidade de ordem mínima:	1000 metros
Preço:	negotiable
Detalhes da embalagem:	Carton
Tempo de entrega:	7 dias
Termos de pagamento:	T/T/PayPal
Habilidade da fonte:	1ton/month

Melhor preço contacto

Informação detalhada

Nome do produto:	Classe 155 7 fios extrudados isolamento ETFE Fio Litz de cobre	Classificação térmica:	155
Diâmetro de fio único:	0.27mm	Material do condutor:	Cobre
No. de fios:	7	Insutação:	ETFE
Destacar:	Custom Class 155 Litz Wire , 7 Strands ETFE Insulation Wire , Extruded Copper Litz Wire

Descrição de produto

Custom Class 155 7 Strands Extruded ETFE Insulation Copper Litz Wire

Litz Wire:

A cable composed of multiple strands of insulated wire, twisted or braided together in a specific configuration to reduce AC resistance, particularly at high frequencies.

ETFE Insulation:

Ethylene Tetrafluoroethylene, a fluoropolymer known for its high dielectric strength, excellent thermal stability, resistance to chemicals and UV radiation, and low friction properties.

Characteristics	Test Standard	Test result
Outer diameter of single wire	0.295mm	0.288 \| 0.287 \| 0.287
Min. insulation thickness	/Mm(min)	0.019 \| 0.018 \| 0.019
Pitch	S12±2	ok \| ok \| ok
Single wire Diameter	0.27±0.004MM	0.269 \| 0.269 \| 0.268
Overall dimension	1.06-1.2mm(Max)	1.078 \| 1.088 \| 1.085
Conductor Resistance	Max. 45.23Ω/KM(max)	44.82 \| 44.73 \| 44.81
Breakdown voltage	Min. 6KV(min)	15 \| 14.5 \| 14.9
Solder ability	450℃ 3Secs	OK \| OK \| OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
