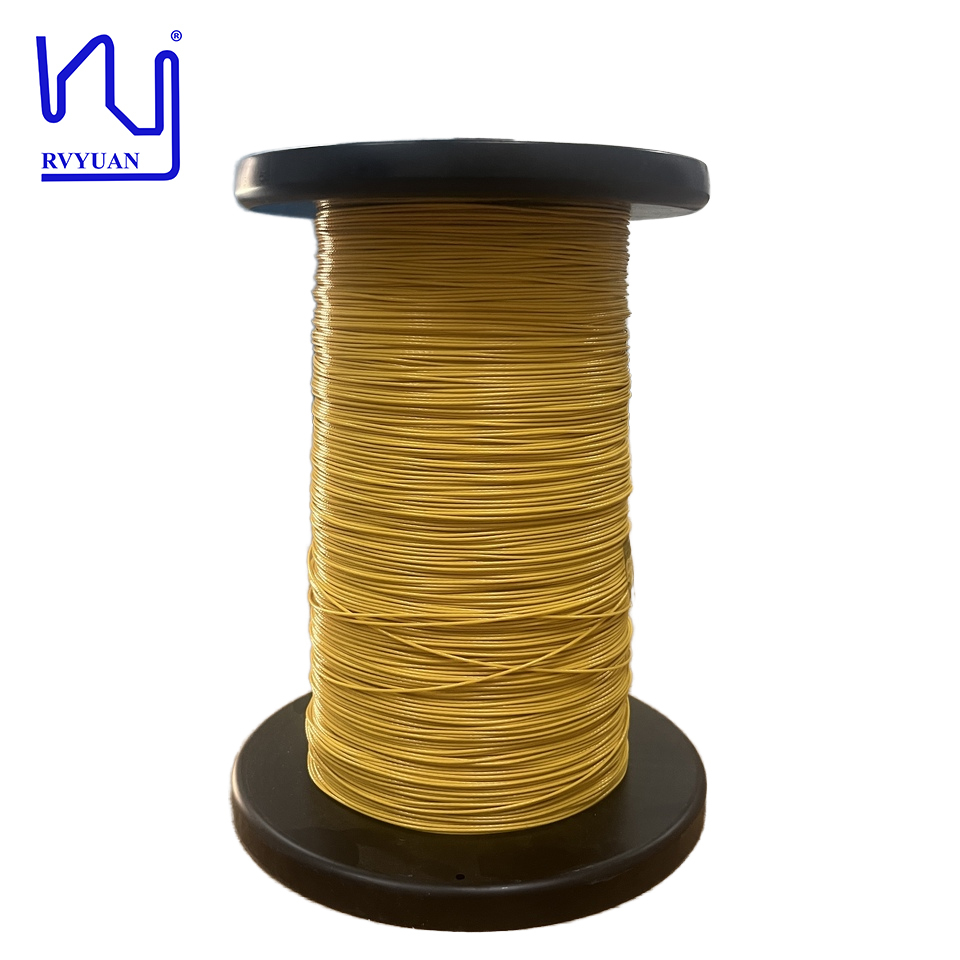

FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer

Informação Básica

Lugar de origem:	CHINA
Marca:	RVYUAN
Certificação:	UL/ISO9001/ISO14001/RoHS/Reach
Número do modelo:	0.27mm

Quantidade de ordem mínima:	1000 metros
Preço:	negotiable
Detalhes da embalagem:	Carton
Tempo de entrega:	7 dias
Termos de pagamento:	T/T/PayPal
Habilidade da fonte:	1ton/month

Melhor preço contacto

Informação detalhada

Nome do produto:	Ftiw-f classe 155 0,27 mmx7 isolamento ETFE Extrudado fio litz para transformador de alta frequência	Classificação térmica:	155
Diâmetro de fio único:	0.27mm	Material do condutor:	Cobre
No. de fios:	7	Insutação:	ETFE
Destacar:	ETFE insulated Litz wire , high frequency transformer wire , 0.27mmx7 extruded Litz wire

Descrição de produto

FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer

ETFE insulation Litz wire is a high-performance cable featuring a bundle of individually insulated strands twisted together and coated with an extruded layer of Ethylene Tetrafluoroethylene (ETFE) insulation. This combination offers superior performance in demanding applications by minimizing skin-effect losses in high-frequency environments, enhanced electrical properties for high-voltage use, and excellent thermal, mechanical, and chemical resistance due to the strong ETFE fluoropolymer.

Technical Specifications

Characteristics	Test Standard	Test result
Outer diameter of single wire	0.295mm	0.288	0.287	0.287
Min. insulation thickness	/Mm(min)	0.019	0.018	0.019
Pitch	S12±2	ok	ok	ok
Single wire Diameter	0.27±0.004MM	0.269	0.269	0.268
Overall dimension	1.06-1.2mm(Max)	1.078	1.088	1.085
Conductor Resistance	Max. 45.23Ω/KM(max)	44.82	44.73	44.81
Breakdown voltage	Min. 6KV(min)	15	14.5	14.9
Solder ability	450℃ 3Secs	OK	OK	OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
