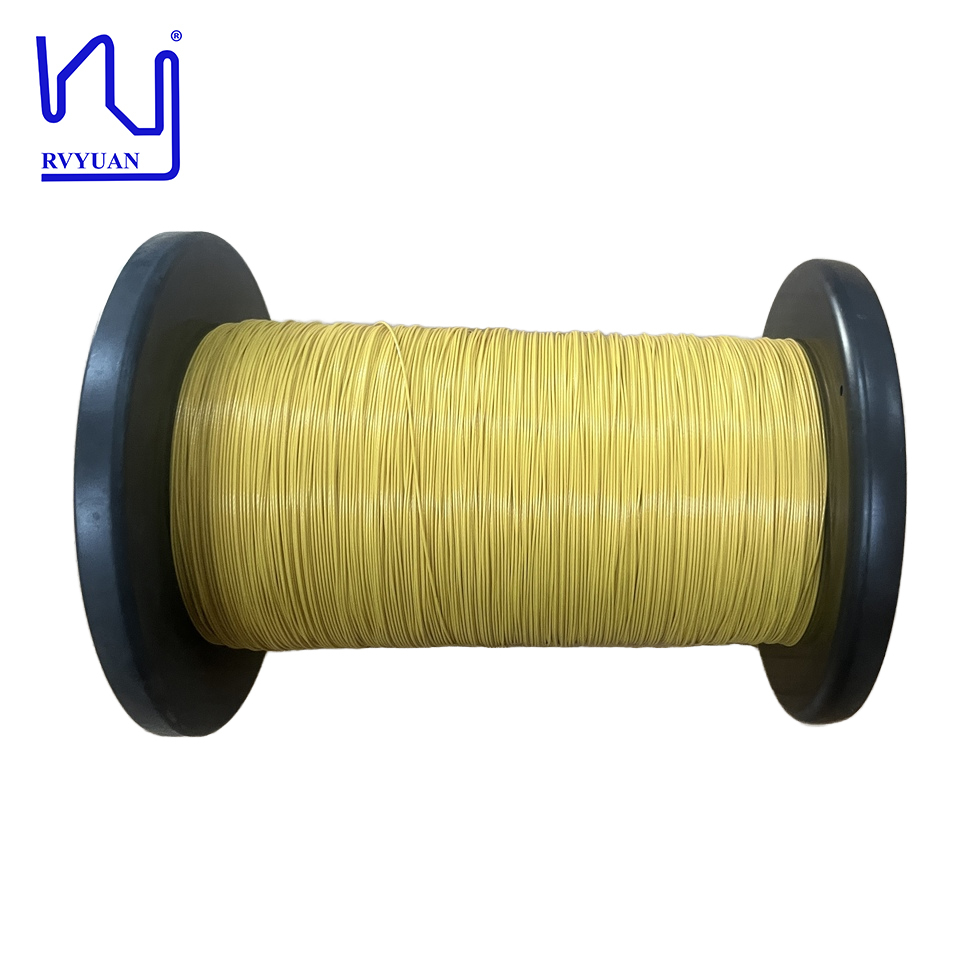

Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire

Informação Básica

Lugar de origem:	CHINA
Marca:	RVYUAN
Certificação:	UL/ISO9001/ISO14001/RoHS/Reach
Número do modelo:	0.24mm

Quantidade de ordem mínima:	1000 metros
Preço:	negotiable
Detalhes da embalagem:	Carton
Tempo de entrega:	7 dias
Termos de pagamento:	T/T/PayPal
Habilidade da fonte:	1ton/month

Melhor preço contacto

Informação detalhada

Nome do produto:	Fios Litz extrudados ETFE personalizados 0,24mmx7 Tiw para transformador	Classificação térmica:	155
Diâmetro de fio único:	0.24mm	Material do condutor:	Cobre
No. de fios:	7	Insutação:	ETFE
Destacar:	ETFE insulated copper litz wire , 0.24mm 7-strand litz wire , TIW stranded copper wire

Descrição de produto

Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire

ETFE insulation offers numerous advantages, including exceptional toughness, high strength, and superior electrical properties. Its ability to withstand extreme temperatures (up to 155°C) ensures the wires operate effectively in a variety of harsh environments. ETFE is also renowned for its excellent resistance to chemicals and UV radiation, further enhancing its durability and longevity.

Characteristics	Test Standard	Test result
Min. insulation thickness	Mm(min)0.11	0.120	0.127	0.120
Pitch	12±2	ok	ok	ok
Single wire Diameter	0.24±0.003MM	0.239	0.240	0.240
Overall dimension	/	1.03	1.05	1.05
Conductor Resistance	Max. 59.18Ω/KM	56.04	56.12	56.10
Breakdown voltage	Min. 6KV(min)	15.2	14.4	14.8
Solder ability	400℃ 3Secs	OK	OK	OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
