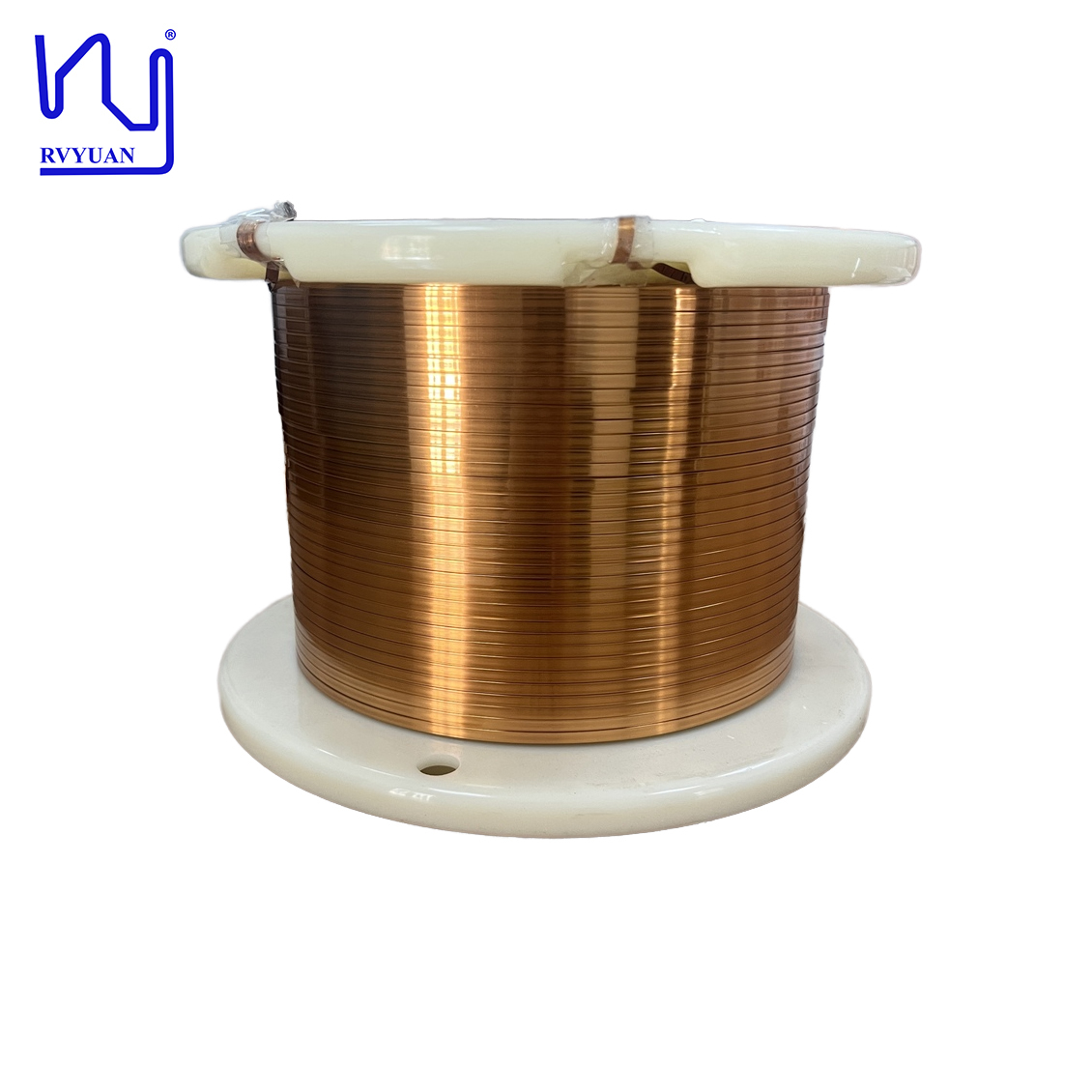

0.3x3.0mm UEW180 Rectangular Flat Enameled Copper Wire Winding Coils

Informação Básica

Place of Origin:	China
Marca:	RVYUAN
Certificação:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	10KG
Preço:	negotiable
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/Paypal
Supply Ability:	Satisfy your demand

Melhor preço contacto

Informação detalhada

Shape:	Rectangular	Width:	3.0mm
Thickness:	0.2mm	Applications:	Motor, transformer
Thermal Grade:	180	Key word:	0.3x3.0mm UEW180 Rectangular Flat Enameled Copper Wire Winding Coils
Enamel coating:	UEW
Destacar:	0.3x3.0mm enameled copper wire , UEW180 flat winding coils , rectangular copper wire with warranty

Descrição de produto

0.3x3.0mm UEW180 Rectangular Flat Enameled Copper Wire Winding Coils

Key Features

High conductivity pure copper material
Excellent shock resistance
Superior durability and strength
Rust resistant with low maintenance
Cost-effective solution
220℃ thermal class rating
AIW enamel coating for optimal insulation

Whether you're an engineer designing a new product or a manufacturer seeking to improve your production process, our enameled rectangular copper wire is the ideal choice for achieving superior results. Trust our expertise and experience to deliver the quality and performance you demand for your electrical applications.

Technical Specifications

Item	Conductor dimension		Unilateral insulation layer thickness		Overall dimension		Breakdown voltage
Item	Thickness	Width	Thickness	Width	Thickness	Width	Breakdown voltage
Unit	mm	mm	mm	mm	mm	mm	kv
SPEC	AVE	0.300	3.000	0.025	0.025	/	/
	Max	0.309	3.060	0.040	0.040	0.35	3.1
	Min	0.191	2.940	0.010	0.010	/	/	0.700
No. 1		0.301	2.998	0.020	0.029	3.341	3.045	1.320
No. 2								1.085
No. 3								1.030
No. 4								0.960
No. 5								1.152
No. 6								/
No. 7								/
No. 8								/
No. 9
No. 10								/
Avg		0.301	2.998	0.020	0.029	0.341	3.045	1.109
Number of reading		1	1	1	1	1	1	5
Min. reading		0.301	2.988	0.020	0.029	0.341	3.045	0.960
Max. reading		0.031	2.988	0.020	0.029	0.341	3.045	1.320
Range		0.000	0.000	0.000	0.000	0.000	0.000	1.320
Result		OK	OK	OK	OK	OK	OK	OK
