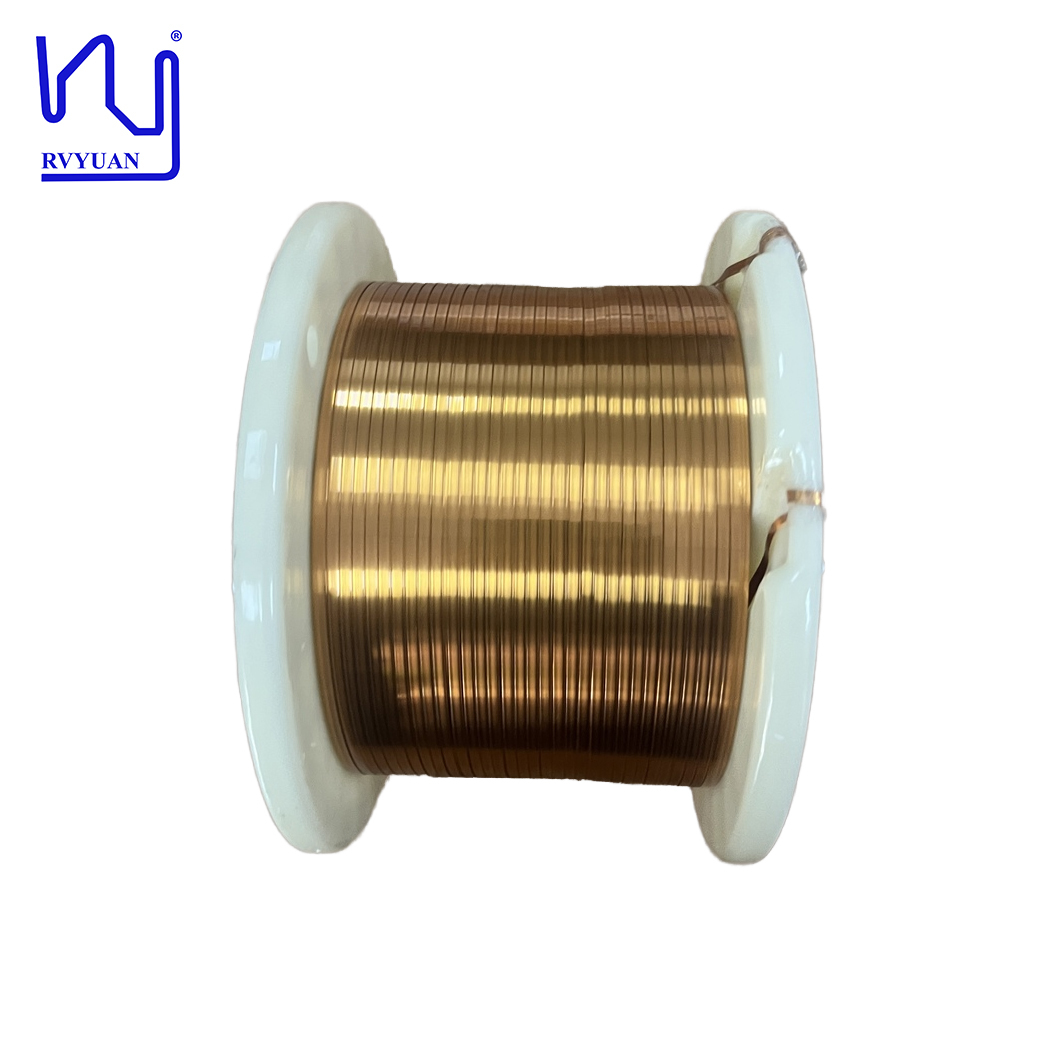

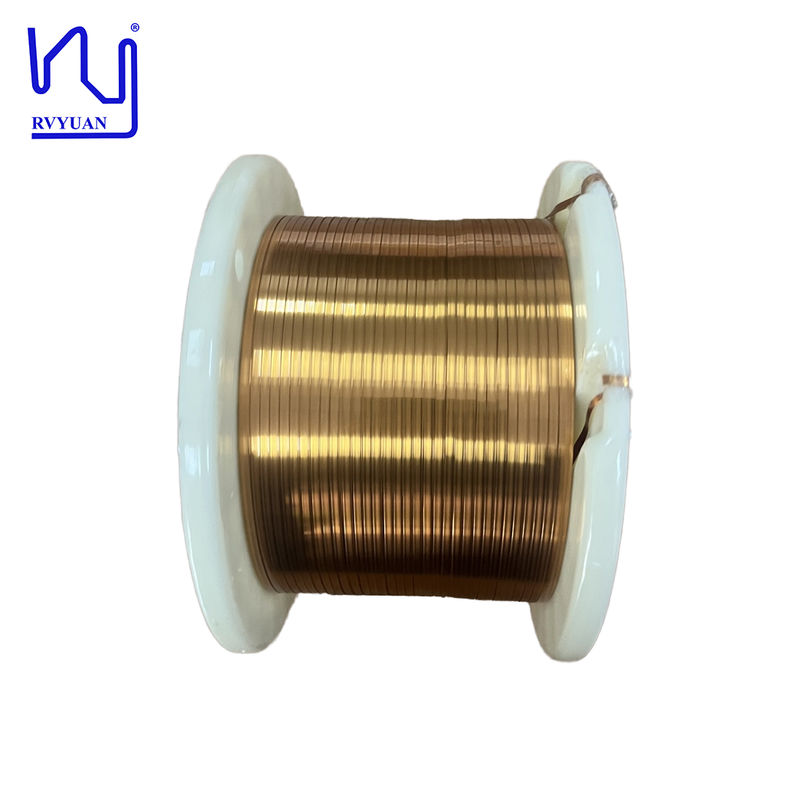

Custom Flat/Rectangular 3mm Enameled Insulated Copper Winding Wire for Inductor

Informação Básica

Place of Origin:	China
Marca:	RVYUAN
Certificação:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	10KG
Preço:	negotiable
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/Paypal
Supply Ability:	Satisfy your demand

Melhor preço contacto

Informação detalhada

Shape:	Rectangular	Width:	3.0mm
Thickness:	0.2mm	Applications:	Motor, transformer
Thermal Grade:	180	Key word:	Custom Flat/Rectangular 3mm Enameled Insulated Copper Winding Wire for Inductor
Enamel coating:	UEW
Destacar:	3mm enameled copper winding wire , flat rectangular insulated copper wire , inductor enameled copper wire

Descrição de produto

Custom Flat/Rectangular 3mm Enameled Insulated Copper Winding Wire for Inductor

This enameled rectangular copper wire is the perfect choice for users seeking reliable and efficient transformer and inductor winding solutions. With its unique rectangular shape, solderable design, and high-temperature resistance, this wire not only meets the demands of modern electrical applications but also offers ease of use and superior performance.

Key Features

High conductivity pure copper material
Excellent shock resistance
Superior durability and strength
Rust resistant with low maintenance
Cost-effective solution
220℃ thermal class rating
AIW enamel coating for optimal insulation

Technical Specifications

Item	Conductor dimension		Unilateral insulation layer thickness		Overall dimension		Breakdown voltage (kv)
Item	Thickness (mm)	Width (mm)	Thickness (mm)	Width (mm)	Thickness (mm)	Width (mm)	Breakdown voltage (kv)
Unit	mm	mm	mm	mm	mm	mm	kv
SPEC AVE	0.300	3.000	0.025	0.025	/	/
Max	0.309	3.060	0.040	0.040	0.35	3.1
Min	0.191	2.940	0.010	0.010	/	/	0.700
No. 1	0.301	2.998	0.020	0.029	3.341	3.045	1.320
No. 2							1.085
No. 3							1.030
No. 4							0.960
No. 5							1.152
Avg	0.301	2.998	0.020	0.029	0.341	3.045	1.109
Result	OK	OK	OK	OK	OK	OK	OK
