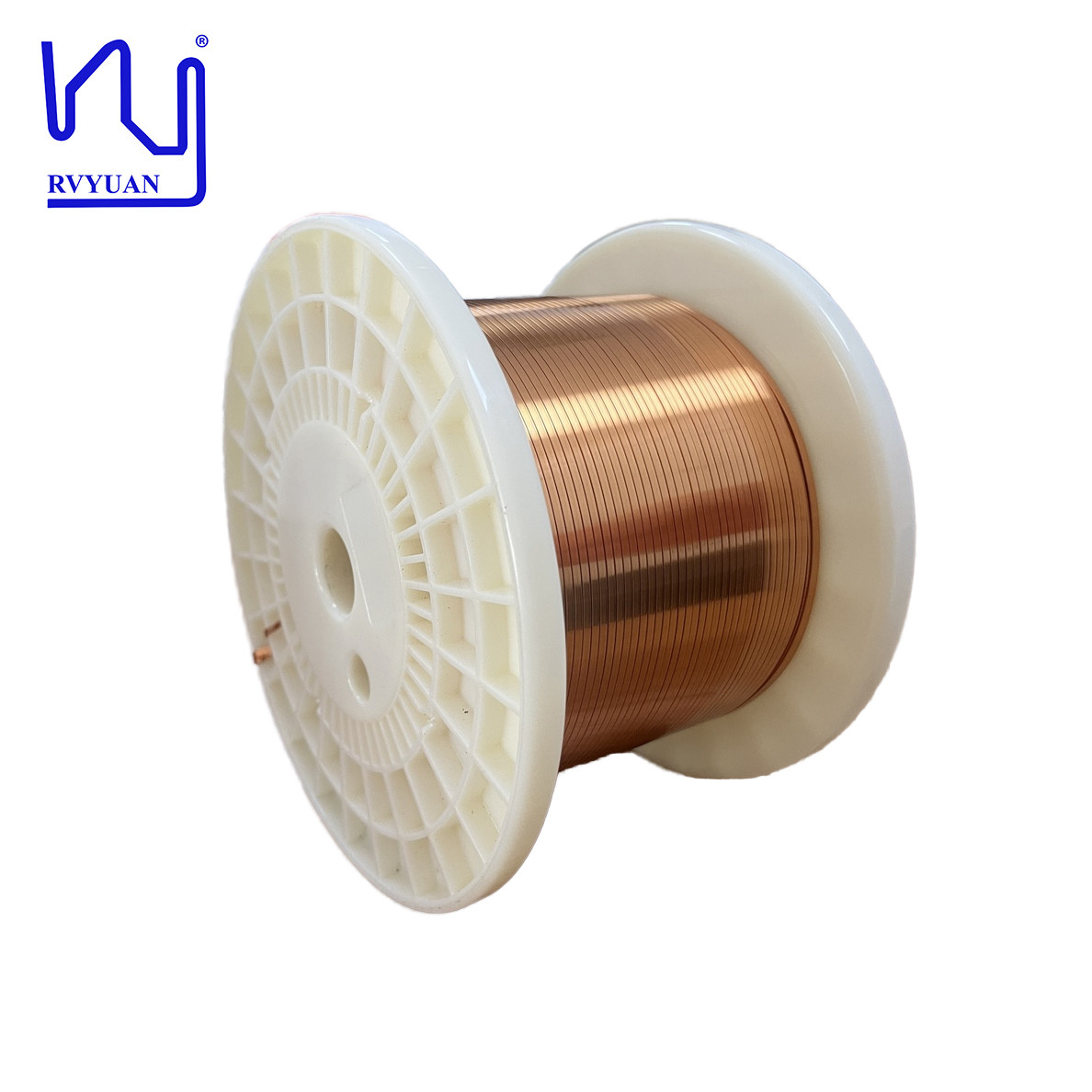

Polyurethane Class 180 0.50mm 0.06mm 0.8mm Enameled Flat Copper Wire For Motor

Informação Básica

Lugar de origem:	China
Marca:	RVYUAN
Certificação:	IEC/NEMA/JIS/RoHS/ISO
Número do modelo:	UEWH

Quantidade de ordem mínima:	10 kg
Preço:	negotiable
Detalhes da embalagem:	Carreteira com cartão
Tempo de entrega:	7 dias
Termos de pagamento:	T/T, PayPal
Habilidade da fonte:	Satisfazer a sua demanda

Melhor preço contacto

Informação detalhada

Shape:	Rectangular	Width of conductor:	2.4mm
Unilateral Insulation Layer Thickness (Width):	0.025mm	Thickness of conductor:	0.5mm
Applications:	Polyurethane Class 180 0.50mm 0.06mm 0.8mm Enameled Flat Copper Wire For Motor	Thermal Grade:	220
Key word:	Polyurethane Class 180 0.50mm 0.06mm 0.8mm Enameled Flat Copper Wire For Motor
Destacar:	Class 180 Enameled Flat Copper Wire , 0.06mm Enameled Flat Copper Wire , 0.8mm Enameled Flat Copper Wire

Descrição de produto

Polyurethane Class 180 0.50mm 0.06mm 0.8mm Enameled Flat Copper Wire For Motor

Our enameled flat copper wires are available in a variety of temperature grades from 180°C to 240°C, making them ideal for high temperature applications. This versatility ensures our wires meet the needs of a variety of industries including automotive, aerospace and renewable energy.

Item		Conductor dimension		Unilateral insulation thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance
		T	W	T	W	T	W	Dielectric breakdown voltage	Conductor resistance
Unit		mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	AVE	0.500	2.400	0.025	/	/	/
	Max	0.509	2.460	0.040	0.550	0.0550	2.500		16.090
	Min	0.491	2.340	0.010				0.700
No. 1		0.501	2.405	0.039	0.544	0.544	2.483	4.880	14.437
No. 2		0.500	2.406	0.039	0.545	0.545	2.485	4.331
No. 3		0.502	2.407	0.039	0.543	0.543	2.484	3.660
No. 4								4.515
No. 5								4.600
No. 6								4.770
No. 7								4.440
No. 8								4.250
No. 9								3.990
No. 10								3.750
Avg		0.501	2.406	0.022	0.039	0.544	2.484	4.319
No.of reading		3	3	3	3	3	3	10
Min. reading		0.500	2.405	0.021	0.022	0.543	2.483	3.660
Max. reading		0.502	2.407	0.023	0.039	0.545	2.485	4.880
Range		0.002	0.002	0.002	0.001	0.002	0.002	1.220
Result		OK	OK	OK	OK	OK	OK	OK	OK

Polyurethane Class 180 0.50mm 0.06mm 0.8mm Enameled Flat Copper Wire For Motor 0
