Thermal Grade 220 Supplies Wire Enameled Flat Copper Wire 2.0mm For Motor

Informação Básica

Lugar de origem:	China
Marca:	RVYUAN
Certificação:	IEC/NEMA/JIS/RoHS/ISO
Número do modelo:	Classe 220

Quantidade de ordem mínima:	Tipos diferentes com differet MOQ
Preço:	negotiable
Detalhes da embalagem:	Carreteira com cartão
Tempo de entrega:	2 a 15 dias úteis
Termos de pagamento:	Negociação, T/T, L/C
Habilidade da fonte:	Satisfazer a sua demanda

Melhor preço contacto

Informação detalhada

Shape:	Rectangular	Conductor Dimension (Width):	2mm
Unilateral Insulation Layer Thickness (Width):	0.5mm	Applications:	Supplies Wire Enameled Flat Copper Wire 2.0mm For Motor
Thermal Grade:	220	Key word:	Supplies Wire Enameled Flat Copper Wire 2.0mm For Motor
Destacar:	2.0mm Enameled Flat Copper Wire , Thermal Enameled Flat Copper Wire , 2mm enamelled wire

Descrição de produto

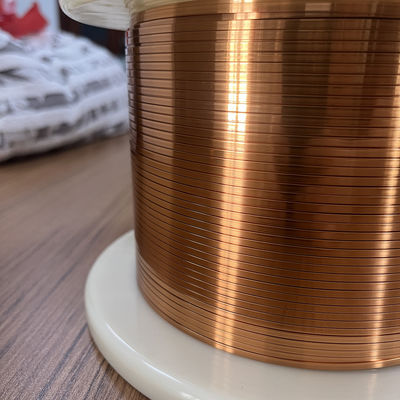

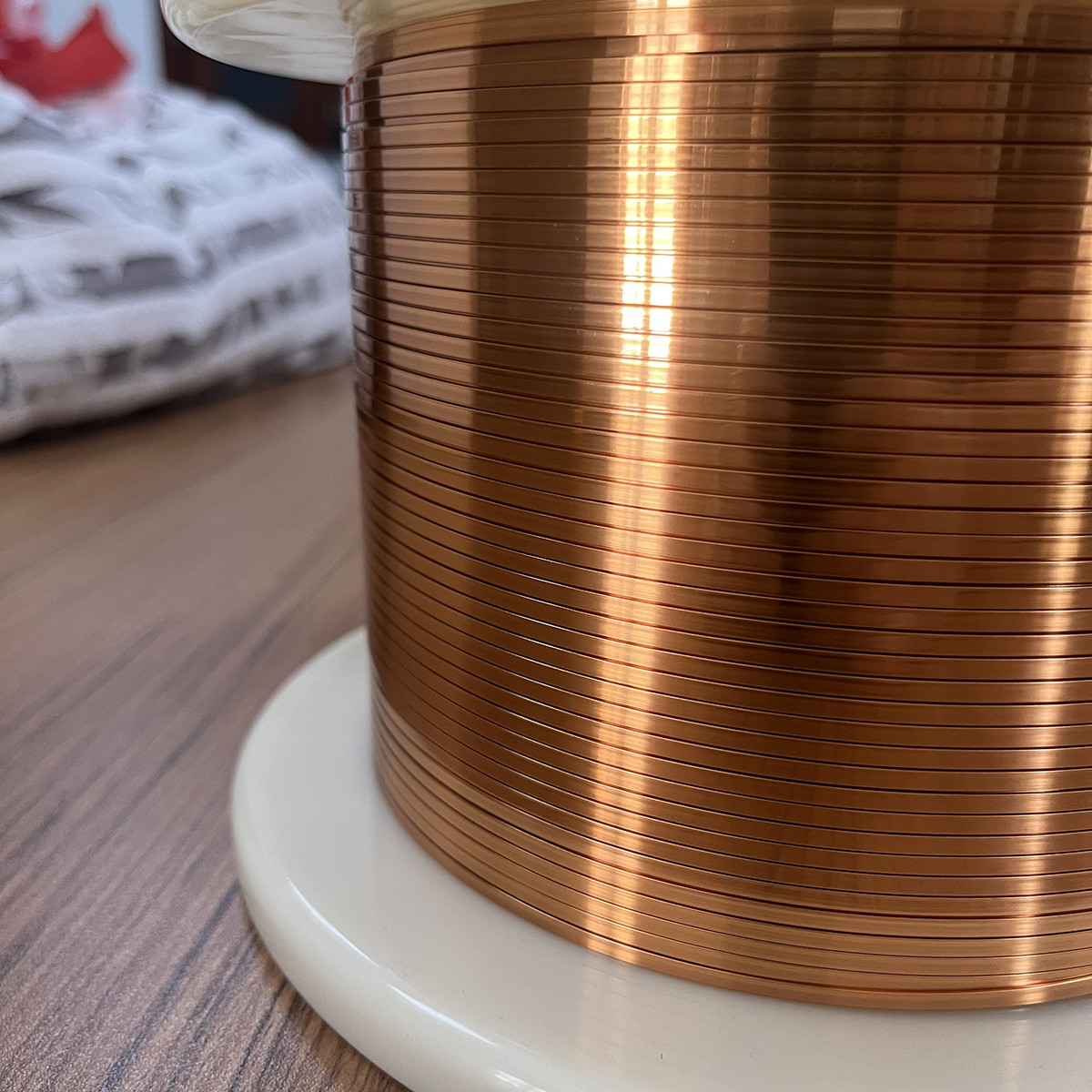

Supplies Wire Enameled Flat Copper Wire 2.0mm For Motor

Our rectangular enameled copper wires come in a wide range of sizes, allowing for flexibility in design and use. We can produce flat wires with thicknesses ranging from an extremely thin 0.03mm to a sturdy 3mm, suitable for a wide range of projects. In addition, our flat wires are available in widths up to 15mm, giving you the versatility you need for complex and large-scale applications. A 25:1 width-to-thickness ratio ensures our wires provide superior performance while maintaining structural integrity.

Item		Conductor dimension		Unilateral adhesive paint thickness	Unilateral insulation layer thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance
Item		Thickness	Width	Unilateral adhesive paint thickness	Thickness	Width	Thickness	Width	Dielectric breakdown voltage	Conductor resistance
Unit		mm	mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	AVE	0.500	2.000	/	0.025	0.025	/	/
	Max	0.509	2.060	/	0.040	0.040	0.0560	2.110		19.490
	Min	0.491	1.940	0.002	0.010	0.010	/	/	0.700
No. 1		0.495	2.001	0.003	0.023	0.022	0.548	2.052	2.310	18.420
No. 2									2.690
No. 3									2.520
No. 4									3.101
No. 5									3.454
No. 6									/
No. 7									/
No. 8									/
No. 9
No. 10									/
Avg		0.495	2.001	0.003	0.023	0.022	0.548	2.052	2.815
Number of reading		1	1				1	1	5
Min. reading		0.495	2.001	0.003	0.023	0.022	0.548	2.052	2.310
Max. reading		0.495	2.001	0.003	0.023	0.022	0.548	2.052	3.454
Range		0.000	0.000				0.000	0.000	1.144
Result		OK	OK				OK	OK	OK	OK
