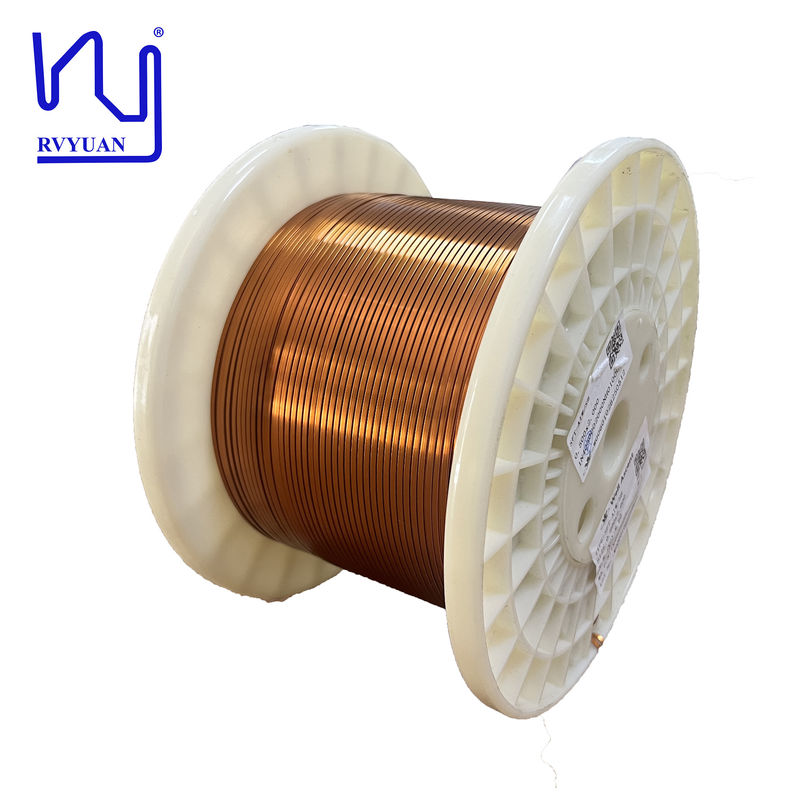

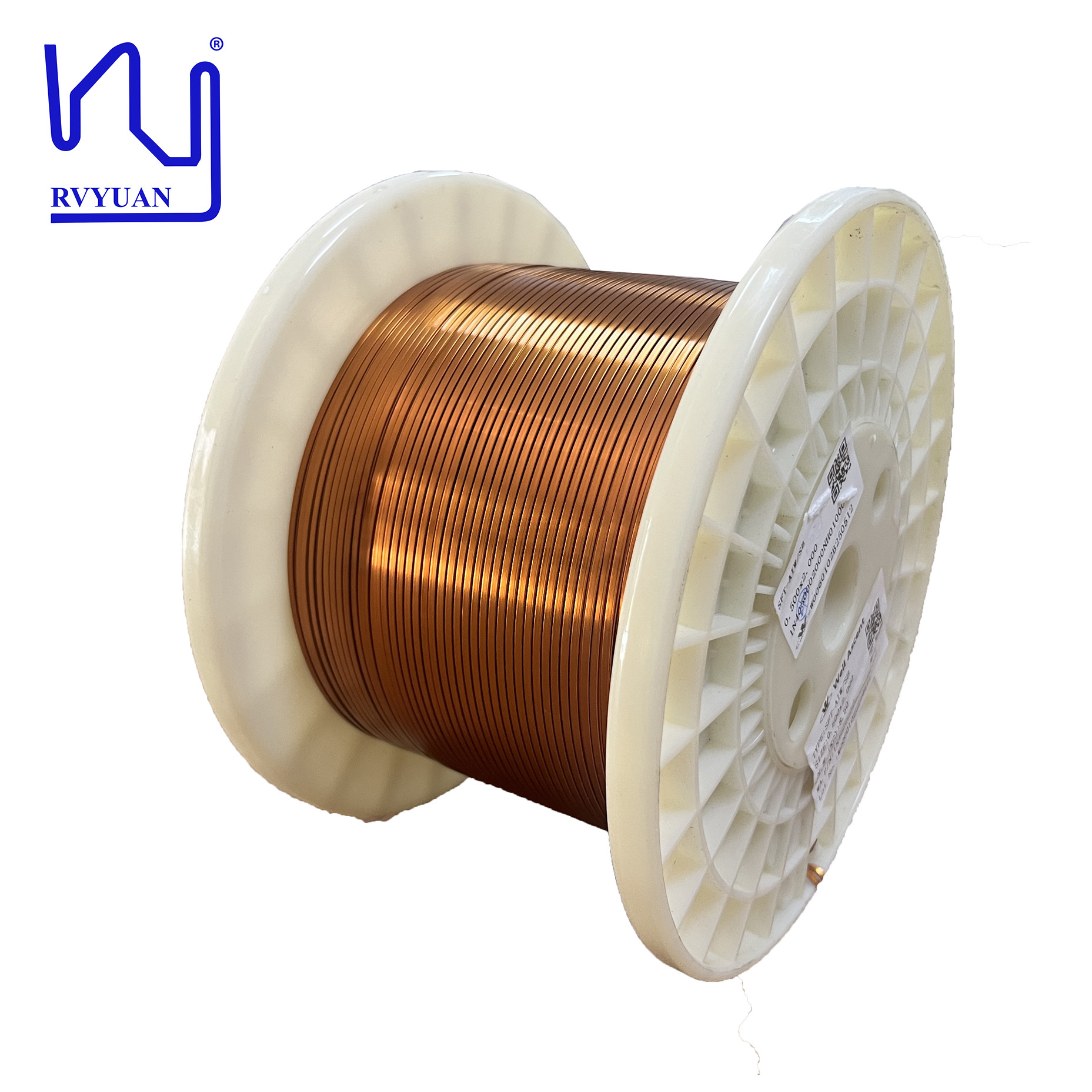

Customized Rectangular Wire 0.2mmx5.0mm Enameled Flat Copper Wire

Informação Básica

Lugar de origem:	China
Marca:	RVYUAN
Certificação:	IEC/NEMA/JIS/RoHS/ISO
Número do modelo:	Classe 220

Quantidade de ordem mínima:	Tipos diferentes com differet MOQ
Preço:	negotiable
Detalhes da embalagem:	Carreteira com cartão
Tempo de entrega:	2 a 15 dias úteis
Termos de pagamento:	Negociação, T/T, L/C
Habilidade da fonte:	Satisfazer a sua demanda

Melhor preço contacto

Informação detalhada

Shape:	Rectangular	Conductor Dimension (Width):	2mm
Unilateral Insulation Layer Thickness (Width):	0.5mm	Applications:	Solderable Self Adhesive 0.2mmx5.0mm Enameled Flat Copper WireCustomized Rectangular Wire 0.2mmx5.0mm Enameled Flat Copper Wire
Thermal Grade:	220	Key word:	Customized Rectangular Wire 0.2mmx5.0mm Enameled Flat Copper Wire
Destacar:	Customized Rectangular Enameled Copper Wire , Customized Rectangular Copper Wire , 0.2mmx5.0mm Enameled Flat Copper Wire

Descrição de produto

Customized Rectangular Wire 0.2mmx5.0mm Enameled Flat Copper Wire

Our enameled flat copper wire offers superior performance, excellent conductivity and durability. We are committed to high quality and customization, offering a range of options to meet your specific needs, ensuring you get the perfect product for your application.

Item		Conductor dimension		Unilateral adhesive paint thickness	Unilateral insulation layer thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance
Item		Thickness	Width	Unilateral adhesive paint thickness	Thickness	Width	Thickness	Width	Dielectric breakdown voltage	Conductor resistance
Unit		mm	mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	AVE	0.500	2.000	/	0.025	0.025	/	/
	Max	0.509	2.060	/	0.040	0.040	0.0560	2.110		19.490
	Min	0.491	1.940	0.002	0.010	0.010	/	/	0.700
No. 1		0.495	2.001	0.003	0.023	0.022	0.548	2.052	2.310	18.420
No. 2									2.690
No. 3									2.520
No. 4									3.101
No. 5									3.454
No. 6									/
No. 7									/
No. 8									/
No. 9
No. 10									/
Avg		0.495	2.001	0.003	0.023	0.022	0.548	2.052	2.815
Number of reading		1	1				1	1	5
Min. reading		0.495	2.001	0.003	0.023	0.022	0.548	2.052	2.310
Max. reading		0.495	2.001	0.003	0.023	0.022	0.548	2.052	3.454
Range		0.000	0.000				0.000	0.000	1.144
Result		OK	OK				OK	OK	OK	OK

Customized Rectangular Wire 0.2mmx5.0mm Enameled Flat Copper Wire

Customized Rectangular Enameled Copper Wire

Customized Rectangular Copper Wire

0.2mmx5.0mm Enameled Flat Copper Wire
