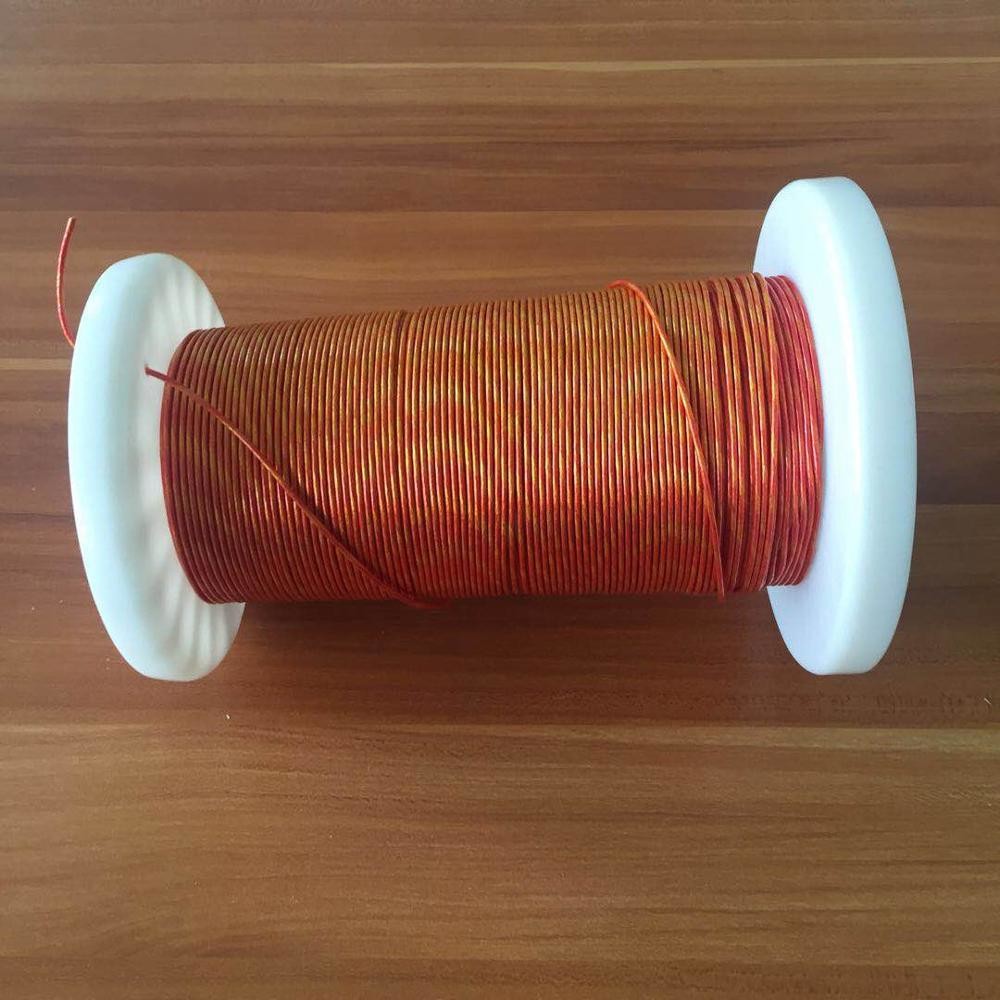

13000V Taped Litz Wire Enameled Copper Stranded Wire

Informação Básica

Place of Origin:	China
Marca:	Rvyuan
Certificação:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Taped litz wire

Minimum Order Quantity:	10kg
Preço:	negotiable
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Melhor preço contacto

Informação detalhada

Name:	13000V Taped Litz Wire Enameled Copper Stranded Wire	Certificação:	ISO9001/ISO14001/UL/SGS
Diameter:	0.4mm	Conductor:	Copper
Insulation:	PI film	Rated Temperature:	180
Key word:	13000V Taped Litz Wire Enameled Copper Stranded Wire	No. of strands:	120

Descrição de produto

13000V Taped Litz Wire Enameled Copper Stranded Wire

The customized taped litz wire is the perfect solution for those seeking a high-performance, reliable and adaptable conductor.With its usperior voltage resistance, customizable features, and robust construction, this taped litz wire is designed to meet the demands of modern applications. Trust Ruiyuan to provide you with the quality and performance you need to elevate your projects to the next level.

Outgoing test of stranded wire	Spec: 0.4x120	Model: 2UEW-F-PI Tape spec:0.025x20
Item	Standard	Test result
Outer conductor diameter(mm)	0.433-0.439	0.424-0.432
Conductor diameter(mm)	0.40±0.005	0.396-0.40
Overall diameter (mm)	Max.6.87	6.04-6.64
Pitch(mm)	130±20	√
Max resistance (Ω/m at20℃)	Max. 0.001181	0.001116
Breakown voltage Mini (V)	6000	13000
