0.5mmx2.0mm Flat / Rectangular Enameled Winding Wire

Informação Básica

Place of Origin:	China
Marca:	RVYUAN
Certificação:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	Different types with differet MOQ
Preço:	negotiable
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T, L/C
Supply Ability:	Satisfy your demand

Melhor preço contacto

Informação detalhada

Shape:	Rectangular	Conductor Dimension (Width):	2mm
Unilateral Insulation Layer Thickness (Width):	0.5mm	Applications:	0.5mmx2.0mm Flat / Rectangular Enameled Winding Wire
Thermal Grade:	220	Key word:	0.5mmx2.0mm Flat / Rectangular Enameled Winding Wire

Descrição de produto

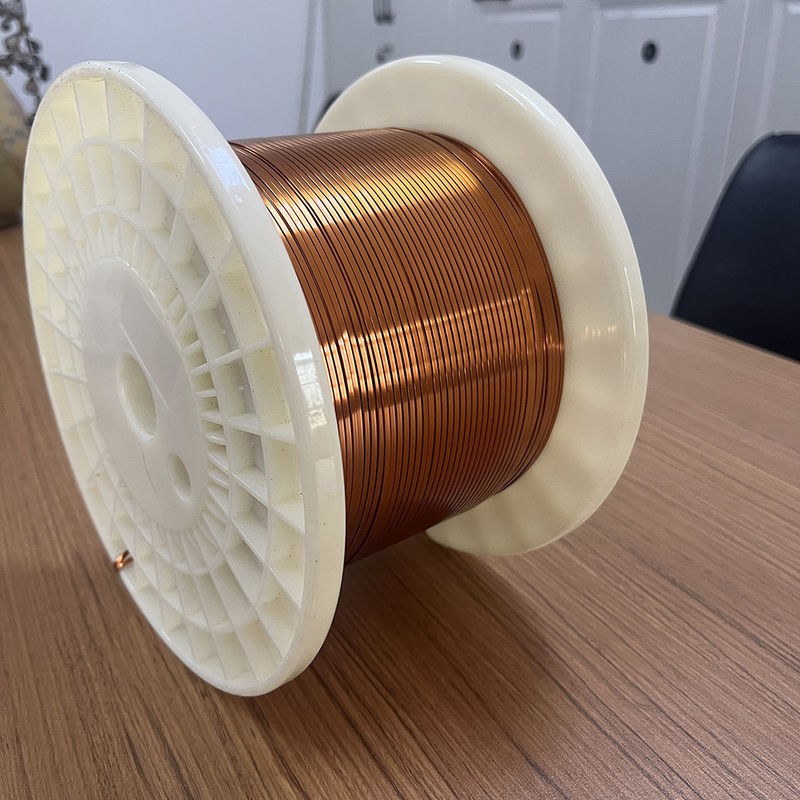

0.5mmx2.0mm Flat / Rectangular Enameled Winding Wire

The enameled flat copper wire provides superior performance, making it ideal for industries that require reliable and efficient electrical components. We offer small batch customization to meet your unique specifications, ensuring you get the perfect product for your project.

Item		Conductor dimension		Unilateral adhesive paint thickness	Unilateral insulation layer thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance
Item		Thickness	Width	Unilateral adhesive paint thickness	Thickness	Width	Thickness	Width	Dielectric breakdown voltage	Conductor resistance
Unit		mm	mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	AVE	0.500	2.000	/	0.025	0.025	/	/
	Max	0.509	2.060	/	0.040	0.040	0.0560	2.110		19.490
	Min	0.491	1.940	0.002	0.010	0.010	/	/	0.700
No. 1		0.495	2.001	0.003	0.023	0.022	0.548	2.052	2.310	18.420
No. 2									2.690
No. 3									2.520
No. 4									3.101
No. 5									3.454
No. 6									/
No. 7									/
No. 8									/
No. 9
No. 10									/
Avg		0.495	2.001	0.003	0.023	0.022	0.548	2.052	2.815
Number of reading		1	1				1	1	5
Min. reading		0.495	2.001	0.003	0.023	0.022	0.548	2.052	2.310
Max. reading		0.495	2.001	0.003	0.023	0.022	0.548	2.052	3.454
Range		0.000	0.000				0.000	0.000	1.144
Result		OK	OK				OK	OK	OK	OK
