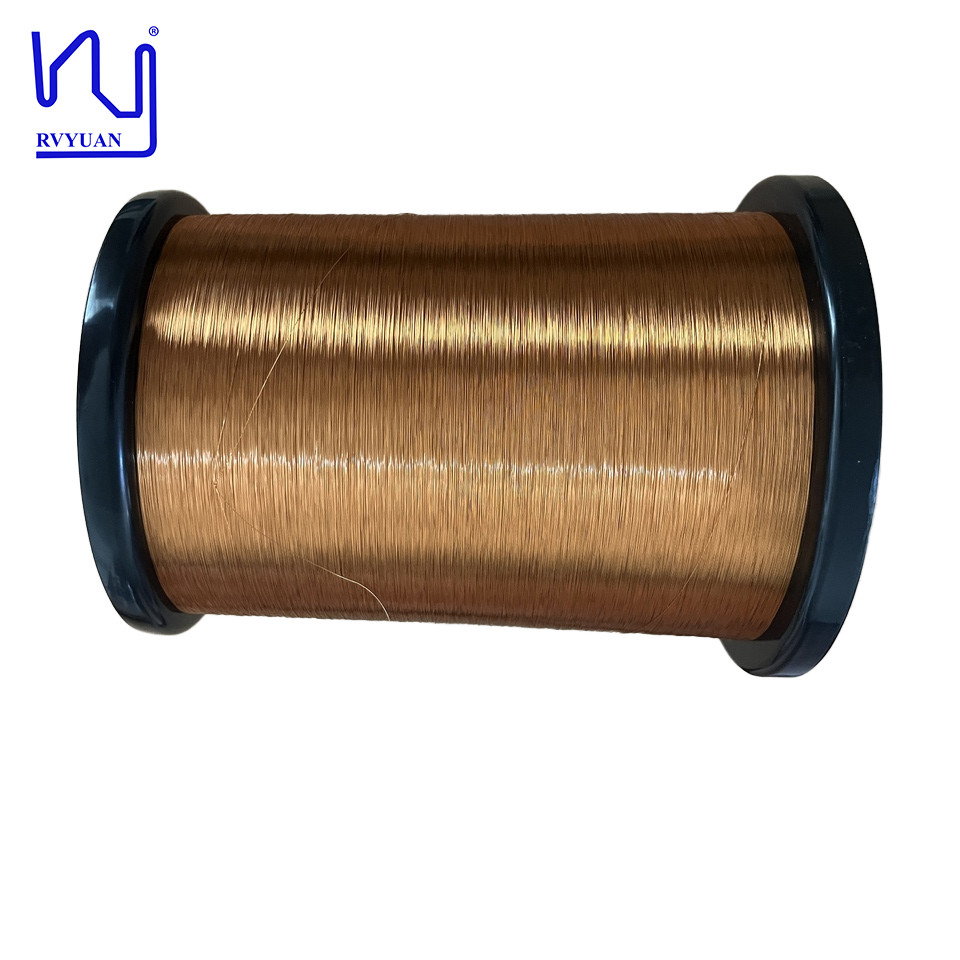

AIW220 Self-bonding Self-adhesive 0.18mm High Temperature Enameled Copper Wire

Informação Básica

Place of Origin:	China
Marca:	Ruiyuan
Certificação:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.18mm

Minimum Order Quantity:	5 kg
Preço:	negotiable
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Melhor preço contacto

Informação detalhada

Product Name:	AIW220 Self-bonding Self-adhesive 0.18mm High Temperature Enameled Copper Wire	Thermal rating:	220
Insulation Material:	AIW	Diameter:	0.18mm
Conductor material:	Copper	Key word:	AIW220 Self-bonding Self-adhesive 0.18mm High Temperature Enameled Copper Wire

Descrição de produto

AIW220 Self-bonding Self-adhesive 0.18mm High Temperature Enameled Copper Wire

This high-temperature self-bonding magnet wire withstands extreme environments and is rated up to 220 degrees Celsius. With a single wire diameter of only 0.18 mm, it is ideal for applications that require extreme precision and reliability, such as voice coil winding.

Test Items	Requirements	Test Data			Result
		Min Sample	Ave Sample	Max Sample
Conductor Diameter	0.18mm ±0.003mm	0.180	0.180	0.180	OK
Thickness of Insulation	≥0.008mm	0.019	0.020	0.020	OK
Basecoat dimensions Overall dimensions	Min.0.226	0.210	0.211	0.212	OK
Bonding film thickness	≤ 0.004mm	0.011	0.011	0.012	OK
DC Resistance	≤ 715Ω/km	679	680	681	OK
Elongation	≥15%	29	30	31	OK
Breakdown Voltage	≥2600V	4669			OK
Bonding Strength	Min.29.4 g	50			OK
